Hex Head Cap Screw DIN 933 M12 x 1.75 x 35mm Full Thread CL 8.8 Medium Carbon Steel Plain DIN 933/8.8 M12X35

Part Number: 330-H02-1M

Legacy Part Number(s): 330-123

Hex Head Cap Screw DIN 933 M12 x 1.75 x 35mm Full Thread CL 8.8 Medium Carbon Steel Plain DIN 933/8.8 M12X35

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 330-H02-1M

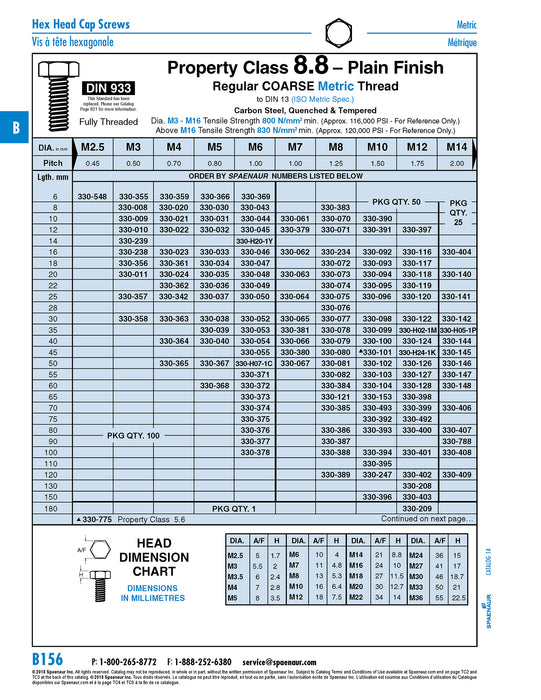

Catalog Page(s) B156
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 330-123
Head Type Hex Head
Material Steel
Finish Plain
Material Grade | Material Class Class 8.8
Thread Type Fully-Threaded
Thread Size M12 x 1.75 mm
Length 35 mm
Head Diameter 19 mm
Head Height 7.5 mm
Standard DIN 933
