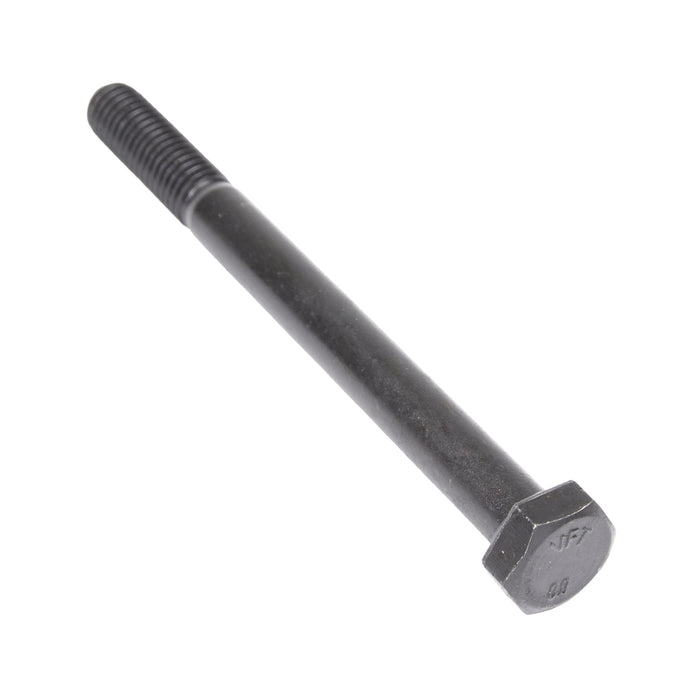

Hex Head Cap Screw, DIN 931 M22 x 2.50 x 260mm Partial Thread Class 8.8 Steel Plain Finish DIN 931/8.8 M22X260

Part Number: 330-695

Hex Head Cap Screw, DIN 931 M22 x 2.50 x 260mm Partial Thread Class 8.8 Steel Plain Finish DIN 931/8.8 M22X260

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 330-695

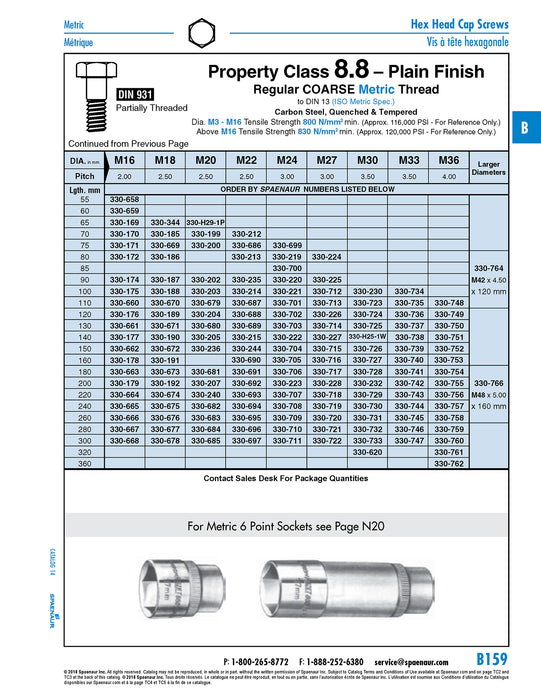

Catalog Page(s) B159
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Hex Head
Material Steel
Finish Plain
Material Grade | Material Class Class 8.8
Thread Type Partially-Threaded
Thread Size M22 x 2.50 mm
Length 260 mm
Head Diameter 34 mm
Head Height 14 mm
Standard DIN 931
Tensile Strength 830 N/mm² min.; 120,000 PSI Approx.
