Specifications

Part Number 330-620

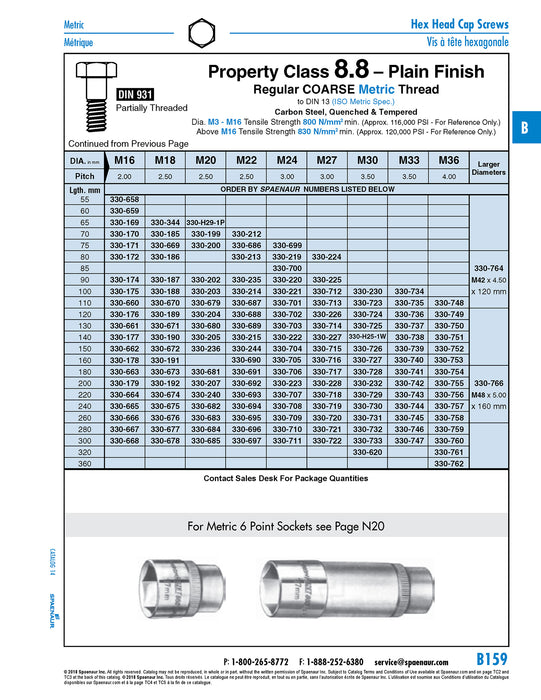

Catalog Page(s) B159
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Hex Head
Material Steel
Finish Plain
Material Grade | Material Class Class 8.8
Thread Type Partially-Threaded
Thread Size M30 x 3.50 mm
Length 320 mm
Head Diameter 46 mm
Head Height 18.7 mm
Standard DIN 931
Tensile Strength 830 N/mm² min.; 120,000 PSI Approx.
