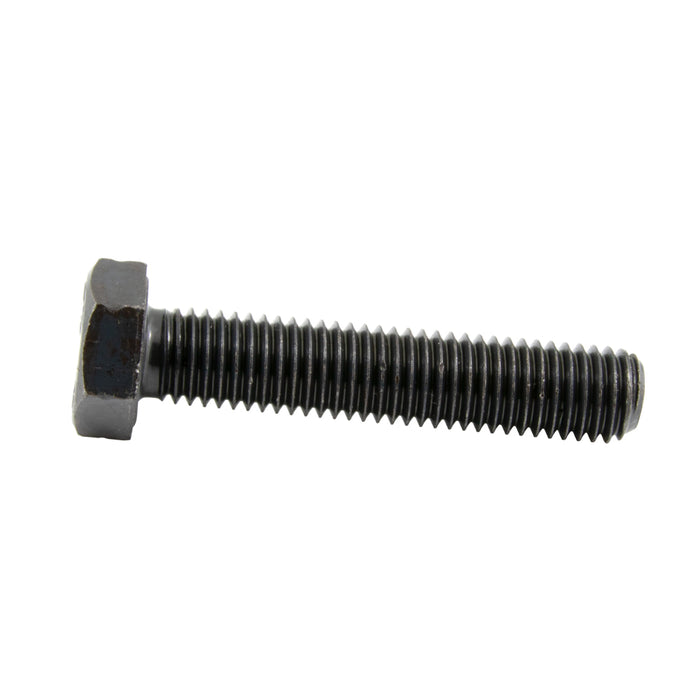

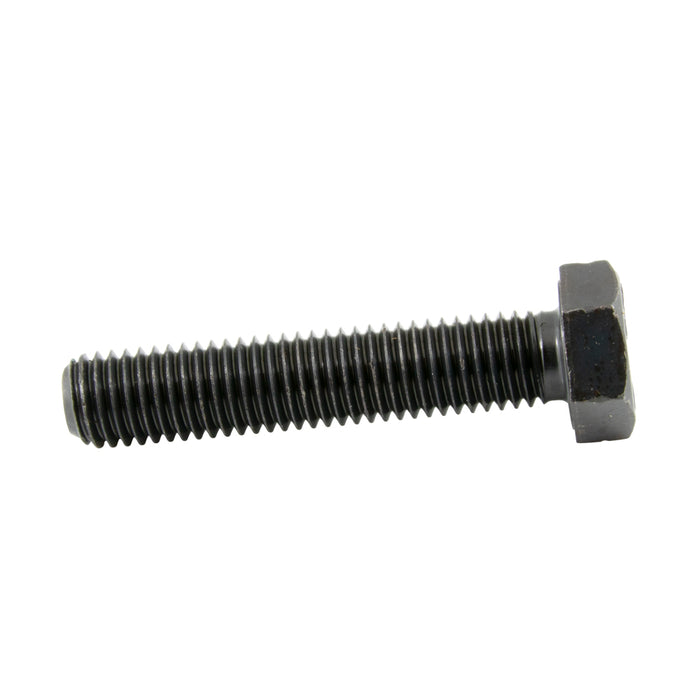

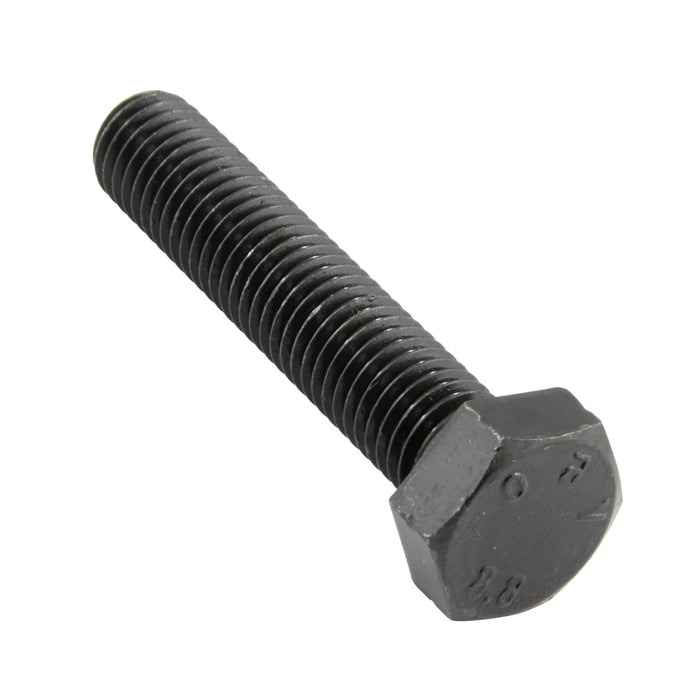

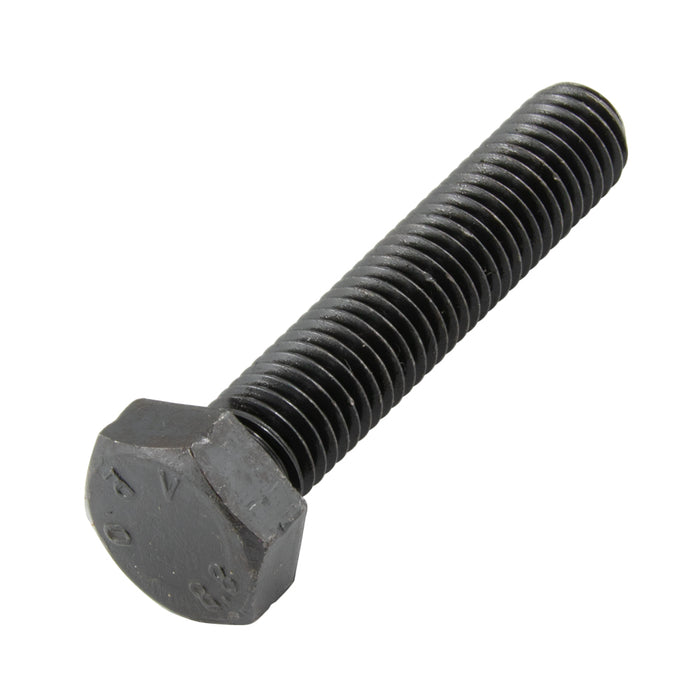

Hex Head Cap Screw DIN 933 M22 x 2.50 x 45mm LG, Full Thread Class 8.8 Steel Plain Finish DIN 933/8.8 M22X45

Part Number: 330-439

Hex Head Cap Screw DIN 933 M22 x 2.50 x 45mm LG, Full Thread Class 8.8 Steel Plain Finish DIN 933/8.8 M22X45

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 330-439

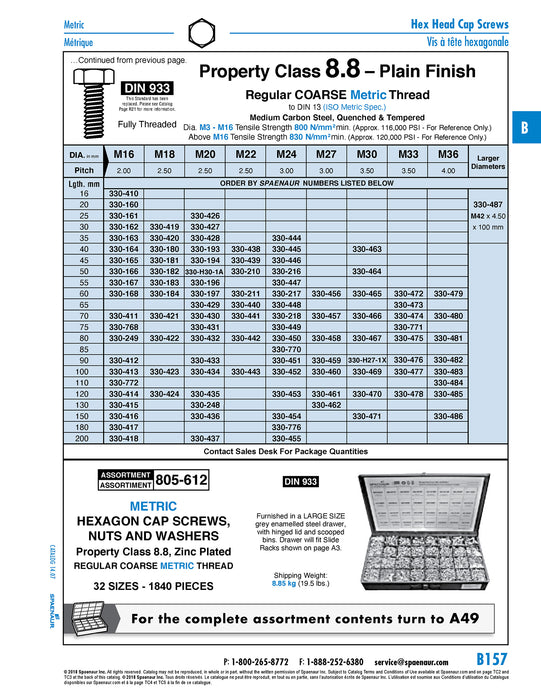

Catalog Page(s) B157
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Hex Head
Material Steel
Finish Plain
Material Grade | Material Class Class 8.8
Thread Type Fully-Threaded
Thread Size M22 x 2.50 mm
Length 45 mm
Head Diameter 32 mm
Head Height 14 mm
Standard DIN 933
