Hex Head Cap Screw, L9 Fastening 3/4"-10 UNC x 4 1/2" LONG Lamalloy L9 Zinc Dichromate-Gold ANSI B18.2.1-1981

Part Number: 329-103

Hex Head Cap Screw, L9 Fastening 3/4"-10 UNC x 4 1/2" LONG Lamalloy L9 Zinc Dichromate-Gold ANSI B18.2.1-1981

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 329-103

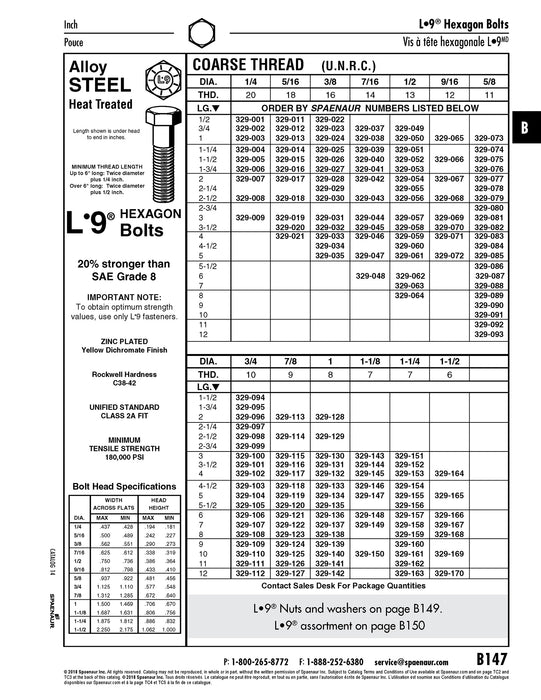

Catalog Page(s) B147
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Hex Head
Material Lamalloy
Finish Yellow Zinc Plated
Material Grade | Material Class L9®
Thread Type Partially-Threaded
Thread Size 3/4"-10
Length 4-1/2"
Head Diameter Nom 1-1/8";Min 1.110";Max 1.125"
Head Height Min 0.548" to Max 0.577"
Hardness C38-C42
Standard ASME/ANSI B18.2.1
