Flange Screw,Serrated Hex Washer HD 1/4"-20 UNC x 1 1/2" Low Carbon Steel Case Hardened Trivalent Zinc Plated by Spaenaur Inc.

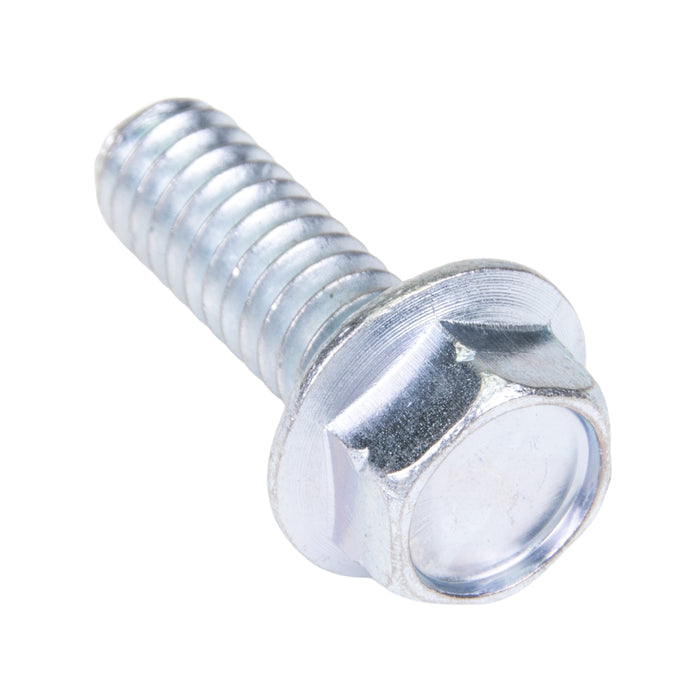

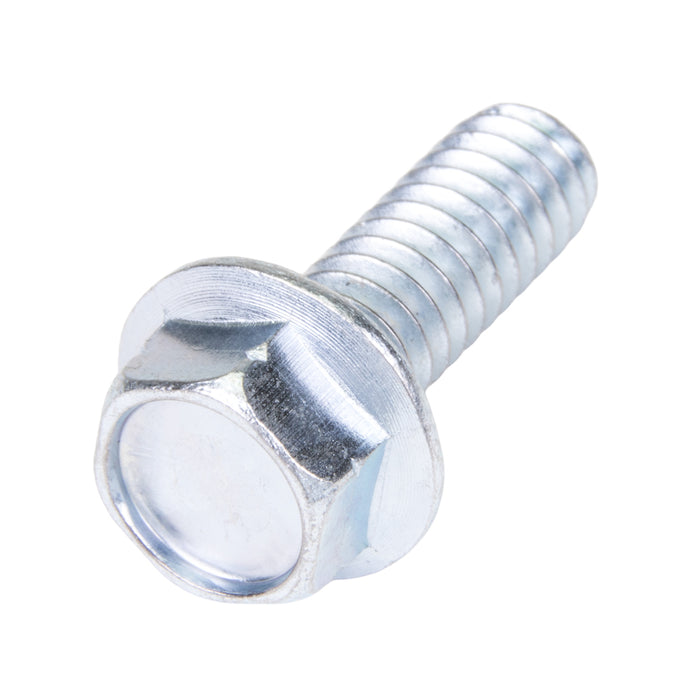

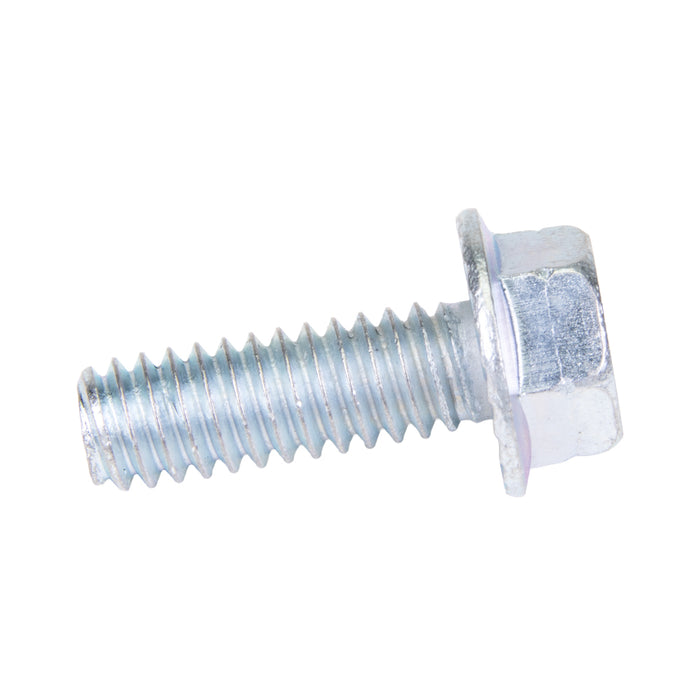

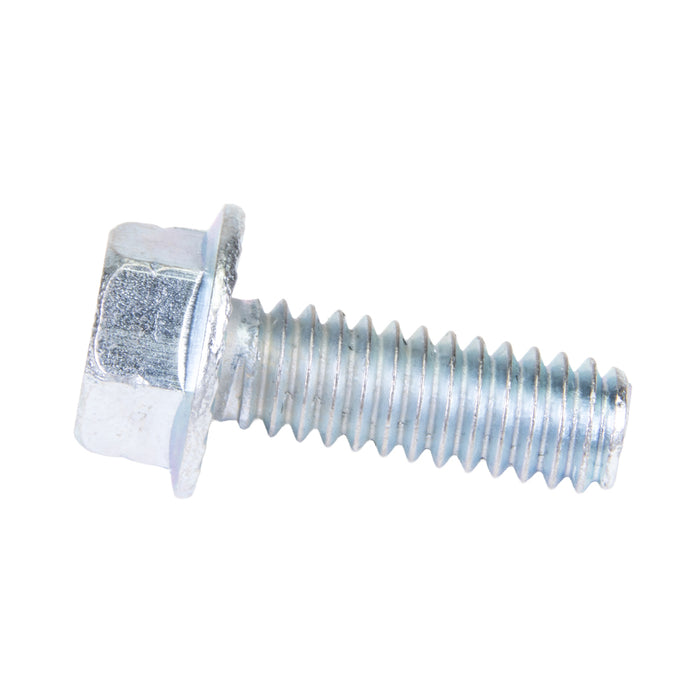

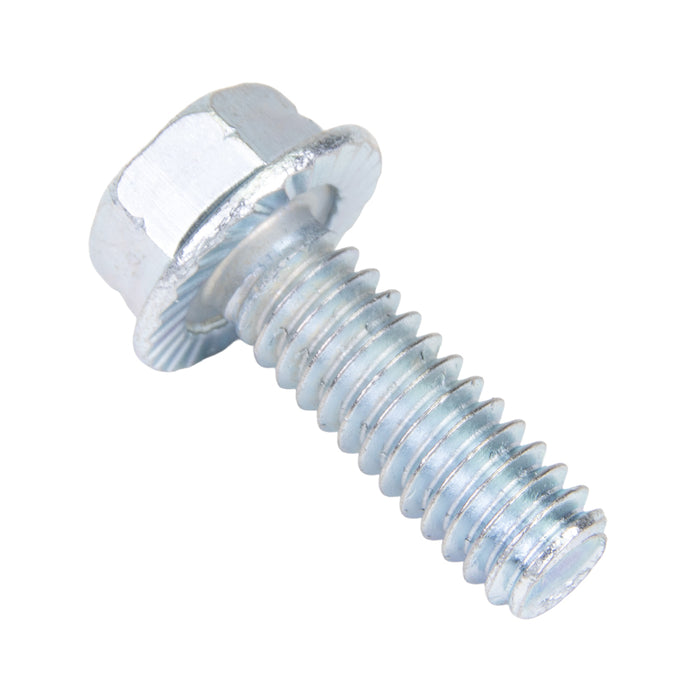

*Representative images - please refer to the product specifications for exact product information

Part Number: 328-F09-1P

Legacy Part Number(s): 328-017

Flange Screw,Serrated Hex Washer HD 1/4"-20 UNC x 1 1/2" Low Carbon Steel Case Hardened Trivalent Zinc Plated

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 328-F09-1P

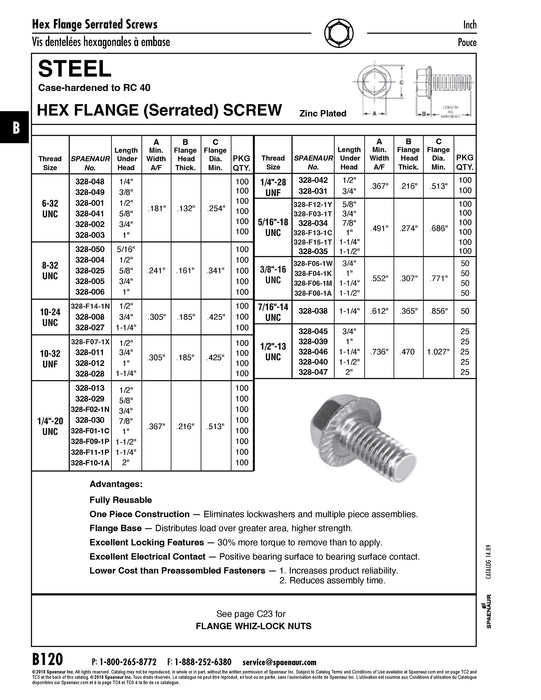

Catalog Page(s) B120
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 328-017
Head Type Serrated Hex Flange Head
Material Steel
Finish Zinc Plated
Material Grade | Material Class Grade 5
Thread Type Fully-Threaded
Thread Size 1/4"-20
Length 1-1/2"
Head Diameter 0.367" to 0.375"
Head Height Min 0.216" to Max 0.240"
Hardness C26-C34
Standard ASME/ANSI B18.2.1
