Flange Screw,Serrated Hex Washer HD 5/16"-18 UNC x 1 1/2" Low Carbon Steel Case Hardened Zinc Plated by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 328-035

Flange Screw,Serrated Hex Washer HD 5/16"-18 UNC x 1 1/2" Low Carbon Steel Case Hardened Zinc Plated

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 328-035

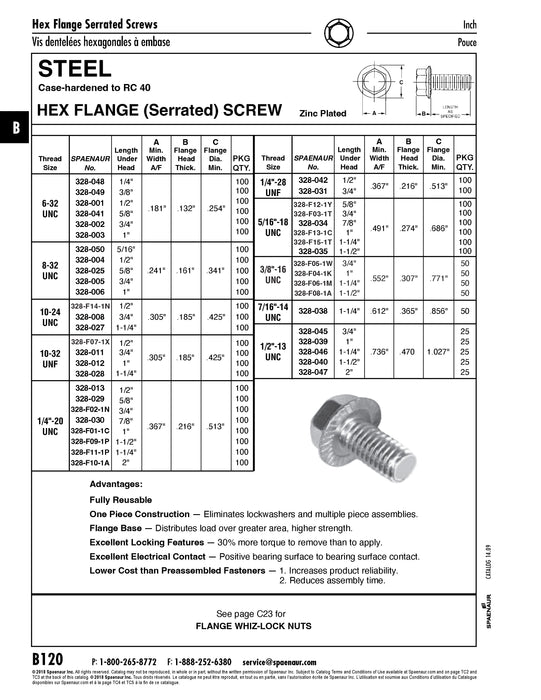

Catalog Page(s) B120
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Serrated Hex Flange Head
Material Steel
Finish Zinc Plated
Material Grade | Material Class Grade 5
Thread Type Fully-Threaded
Thread Size 5/16"-18
Length 1-1/2"
Head Diameter 0.491" to 0.500"
Head Height Min 0.274" to Max 0.298"
Hardness C26-C34
Standard ASME/ANSI B18.2.1
