Flange Screw,Serrated Hex Washer HD 1/4"-28 UNF x 3/4" Low Carbon Steel Zinc Plated Case Hardened by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 328-031

Flange Screw,Serrated Hex Washer HD 1/4"-28 UNF x 3/4" Low Carbon Steel Zinc Plated Case Hardened

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 328-031

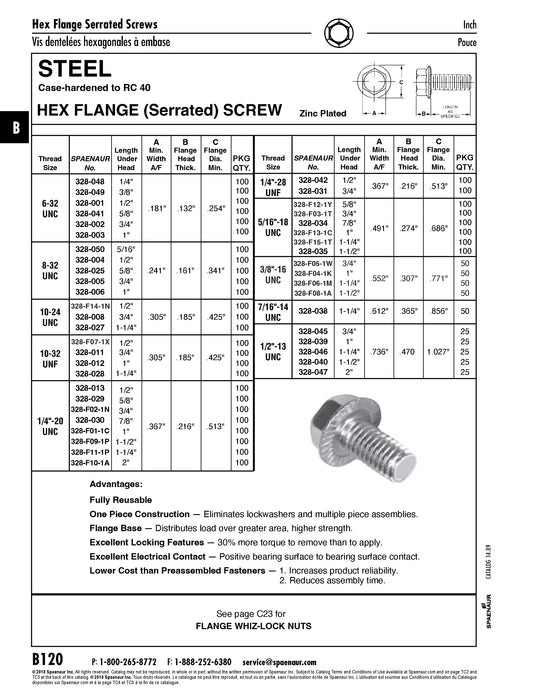

Catalog Page(s) B120
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Serrated Hex Flange Head
Material Steel
Finish Zinc Plated
Material Grade | Material Class Grade 5
Thread Type Fully-Threaded
Thread Size 1/4"-28
Length 3/4"
Head Diameter 0.367" to 0.375"
Head Height Min 0.216" to Max 0.240"
Hardness C26-C34
Standard ASME/ANSI B18.2.1
