Hex Head Cap Screw Fully Threaded 3/4"-10 UNC x 3 1/2" LG Grade 5 Steel Zinc Plated ANSI B18.2.1 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 326-G01-1A

Legacy Part Number(s): 326-375

Hex Head Cap Screw Fully Threaded 3/4"-10 UNC x 3 1/2" LG Grade 5 Steel Zinc Plated ANSI B18.2.1

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 326-G01-1A

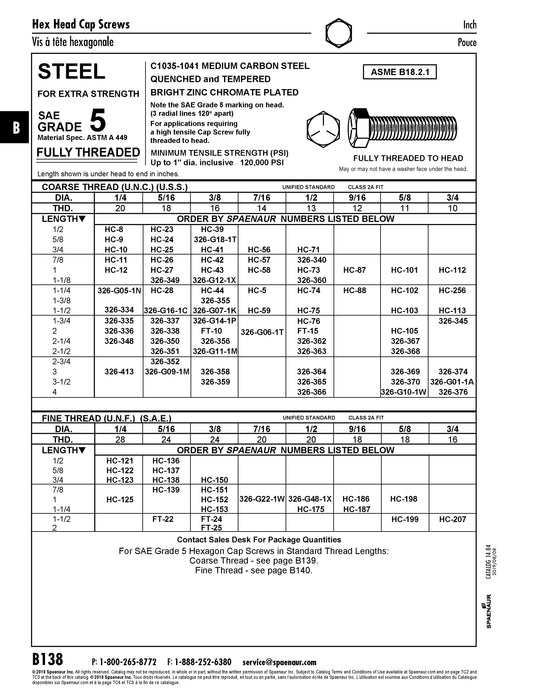

Catalog Page(s) B138
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 326-375
Head Type Hex Head
Material Steel
Finish Bright Zinc Chromate Plated
Material Grade | Material Class Grade 5
Thread Type Fully-Threaded
Thread Size 3/4"-10
Length 3-1/2"
Head Diameter Basic 1-1/8";Min 1.100"; Max 1.125"
Head Height Basic 15/32";Min 0.455";Max 0.483"
Hardness C25-C34
Standard ASME/ANSI B18.2.1
Tensile Strength 120,000 Minimum PSI
