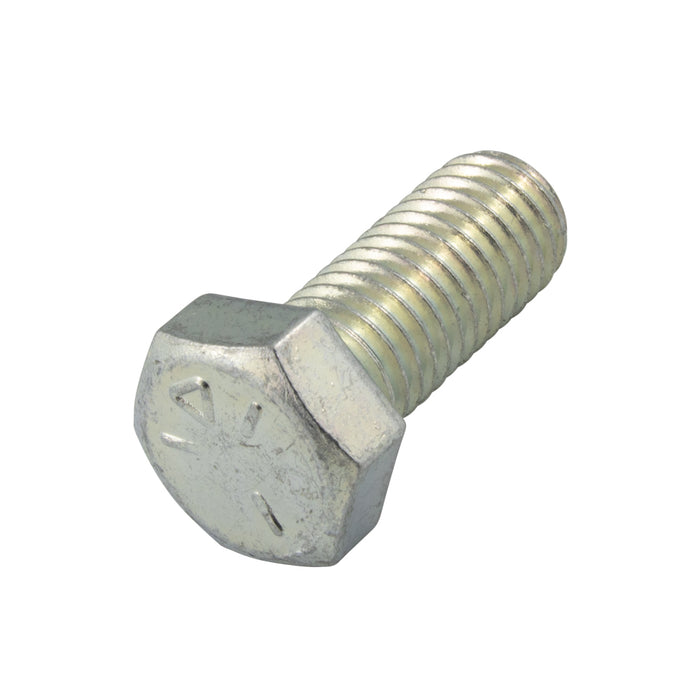

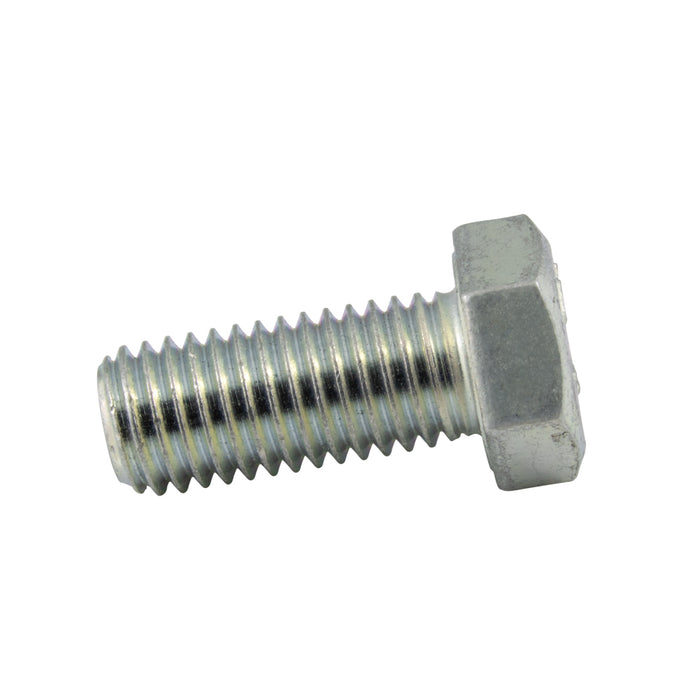

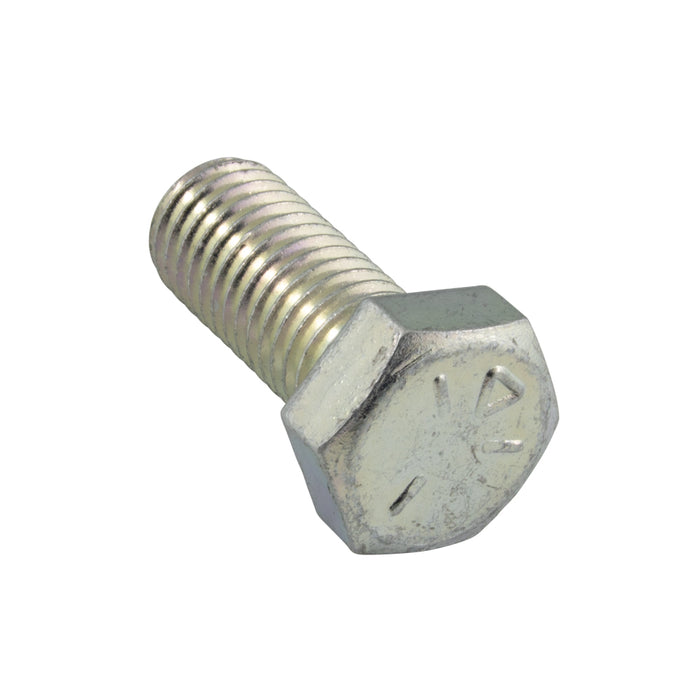

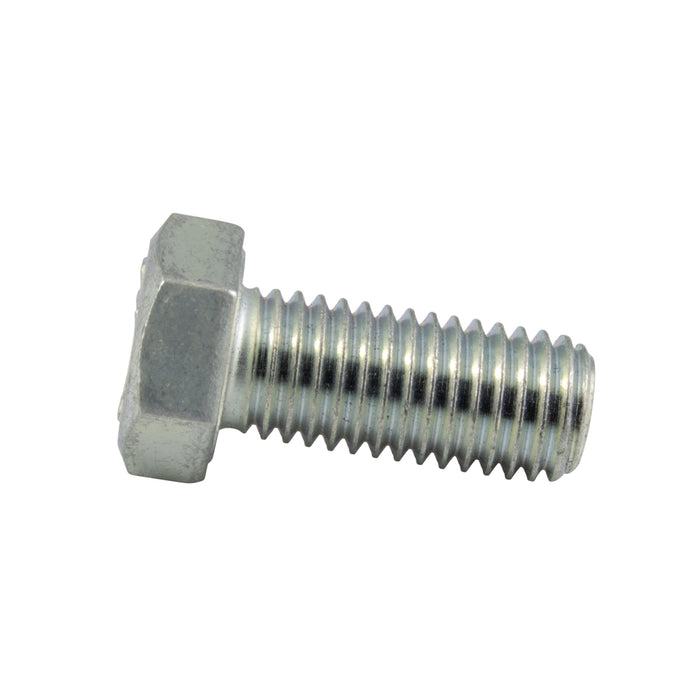

Hex Head Cap Screw, Fully Threaded 1/4"-20 UNC x 2-1/4" LG Grade 5 Steel Zinc Plated ANSI B18.2.1-1965

Part Number: 326-348

Hex Head Cap Screw, Fully Threaded 1/4"-20 UNC x 2-1/4" LG Grade 5 Steel Zinc Plated ANSI B18.2.1-1965

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 326-348

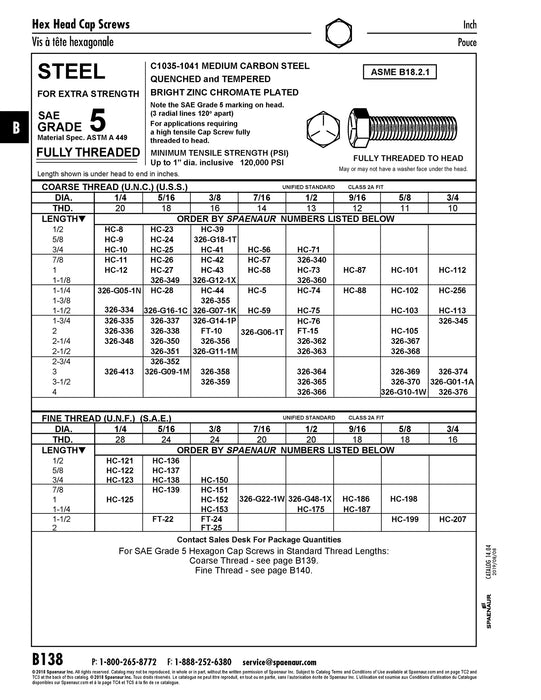

Catalog Page(s) B138
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Hex Head
Material Steel
Finish Bright Zinc Chromate Plated
Material Grade | Material Class Grade 5
Thread Type Fully-Threaded
Thread Size 1/4"-20
Length 2-1/4"
Head Diameter Basic 7/16";Min 0.428"; Max 0.438"
Head Height Basic 5/32";Min 0.150";Max 0.163"
Hardness C25-C34
Standard ASME/ANSI B18.2.1
Tensile Strength 120,000 Minimum PSI
