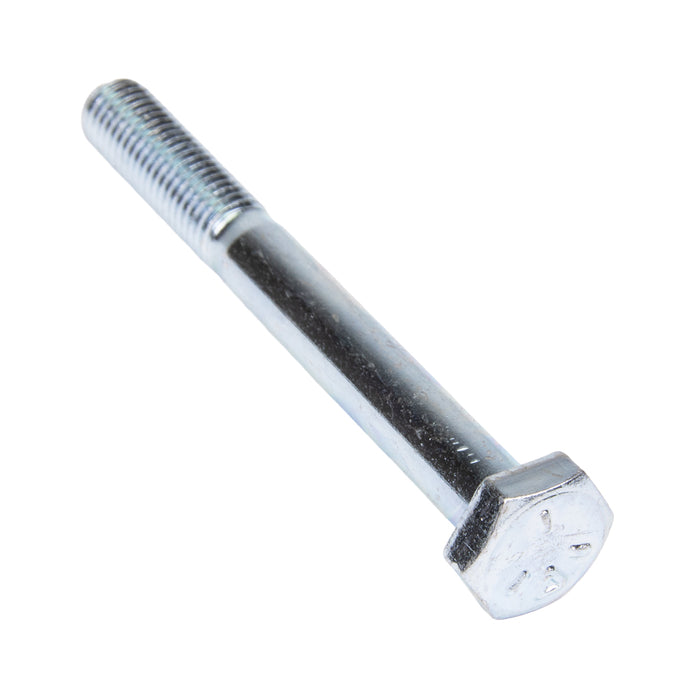

Hex Head Cap Screw Sae 7/8"-14 UNF x 6 1/2" LG Grade 5 Medium Carbon Steel Zinc Chromate Plated, ANSI B18.2.1-1965

Part Number: 326-309

Hex Head Cap Screw Sae 7/8"-14 UNF x 6 1/2" LG Grade 5 Medium Carbon Steel Zinc Chromate Plated, ANSI B18.2.1-1965

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 326-309

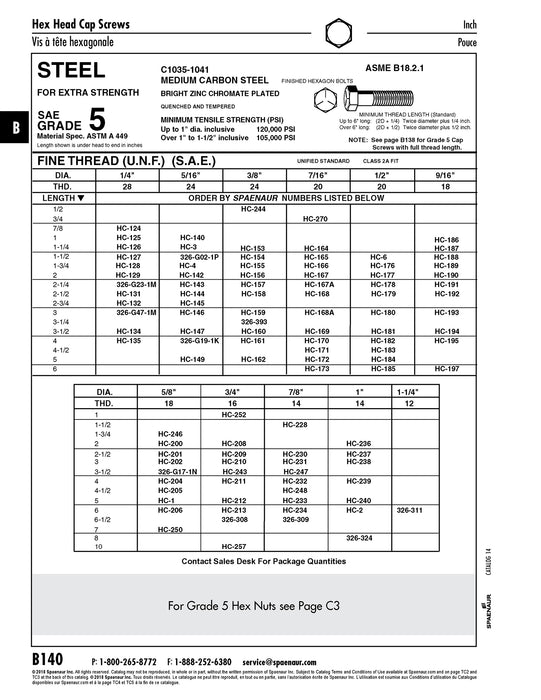

Catalog Page(s) B140
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Hex Head
Material Steel
Finish Bright Zinc Chromate Plated
Material Grade | Material Class Grade 5
Thread Type Partially-Threaded
Thread Size 7/8"-14
Thread Class 2A
Length 6-1/2"
Standard ASME/ANSI B18.2.1
Tensile Strength 120,000 Minimum PSI
