Part Number: 317-274

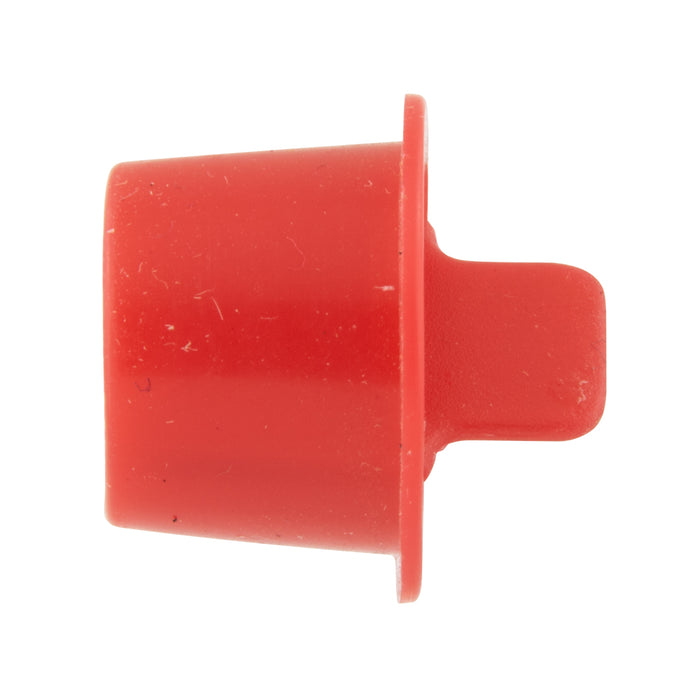

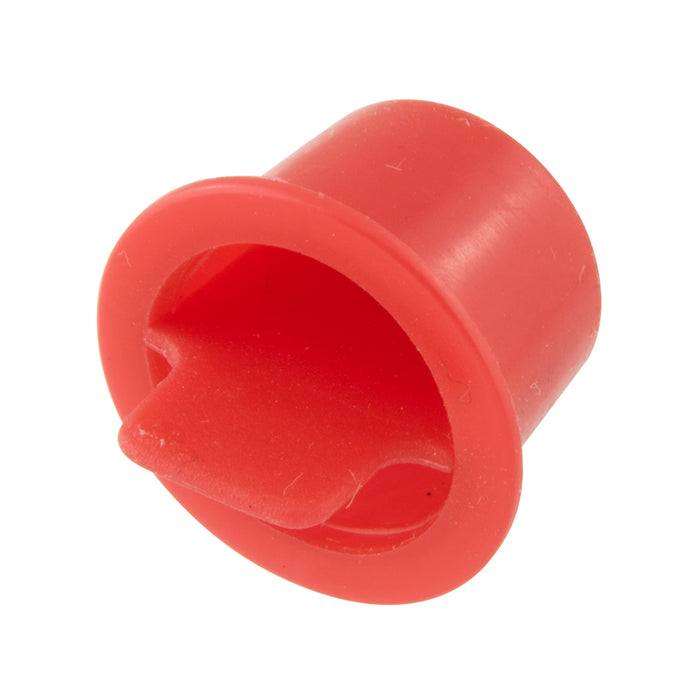

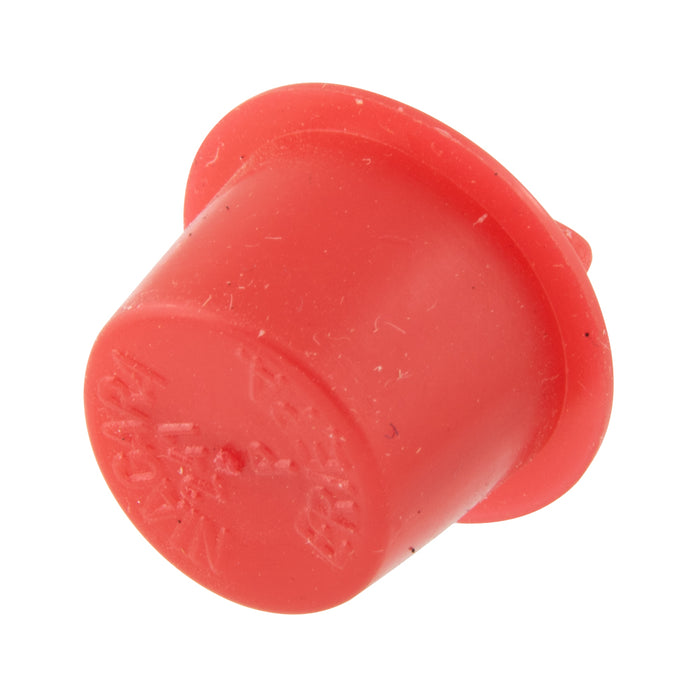

Pull Plug 1 3/4 x 7/8 Low Density Polyethylene Colour Red

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 317-274

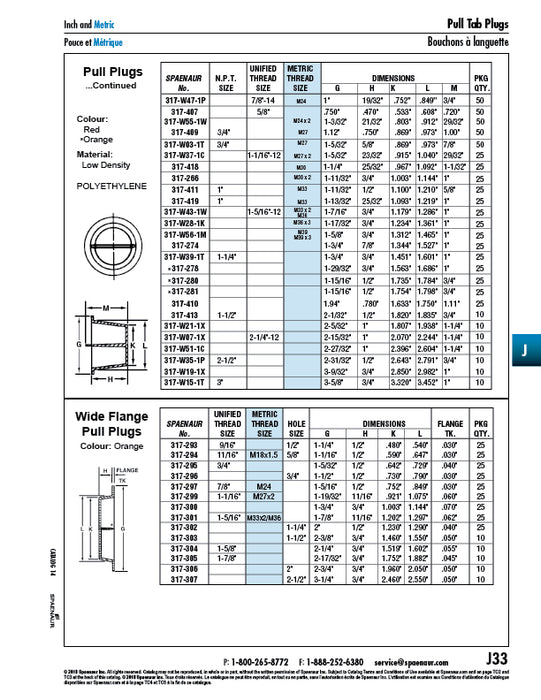

Catalog Page(s) J33
System of Measurement Imperial/Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Small Outside Diameter 1.344"; 34.14 mm
Large Outside Diameter 1.527"; 38.79 mm
Flange Diameter 1"-3/4"; 44.45 mm
Overall Height 7/8"; 22.35 mm
Compatible Metric Thread Diameter M39; M39 x 3
