Spring Nuts "U" Type for 1/4"-20 UNC MS,Panel Range .064-.125" Spring Steel Heat Treat Oil Dipped by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 2293

Spring Nuts "U" Type for 1/4"-20 UNC MS,Panel Range .064-.125" Spring Steel Heat Treat Oil Dipped

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 2293

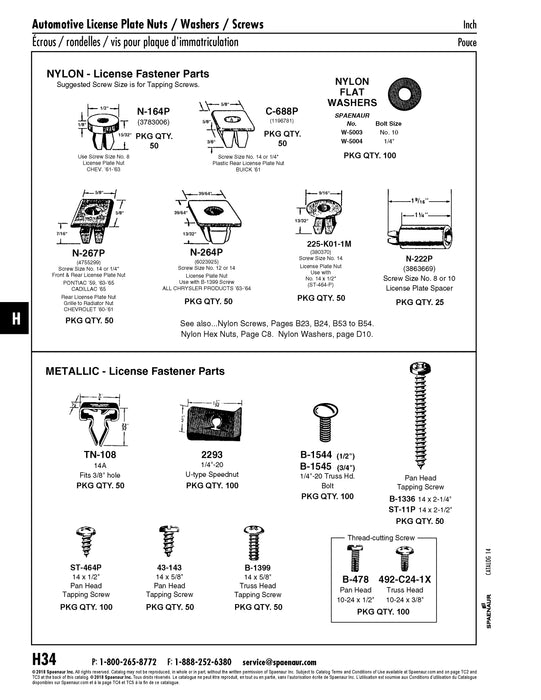

Catalog Page(s) C78,H34
System of Measurement Imperial
Speed Nut Type U-Type
Thread Size 1"/4" - 20
Nut Material Spring Steel
Nut Coating Oil
Overall Width 0.500"
Overall Length 0.970"
Hole Diameter Min 0.343"
Centre of Hole to Round Panel Edge 0.500"
Compatible Material Thickness 0.064"-0.125"
Brand Tinnerman®
Manufacturer's Part Number D01303-1420-27
Standards Met UNC
