Part Number: 202-164

"U" Type Spring Nut "Cd" Design #10-24 UNC x .025-.064" Panel x .64" LG x .44" Wd Spring Steel Heat Treated Soluble Oil Dipped

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 202-164

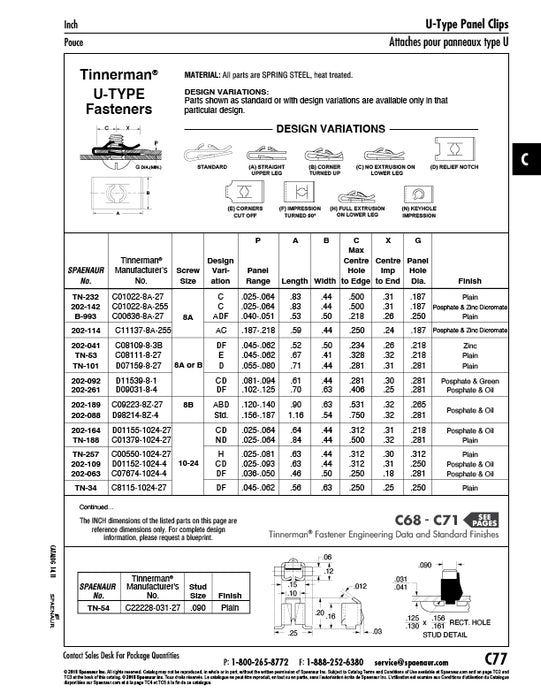

Catalog Page(s) C77
System of Measurement Imperial
Speed Nut Type U-Type
Thread Size #10 - 24
Design Variation Design CD
Nut Material Spring Steel
Nut Coating Oil
Overall Width 0.437"
Overall Length 0.640"
Hole Diameter Min 0.218"
Centre of Hole to Round Panel Edge 0.312"
Compatible Material Thickness 0.025"-0.064"
Brand Tinnerman®
Manufacturer's Part Number D01155-1024-27
Standards Met UNC
