Part Number: 097-449

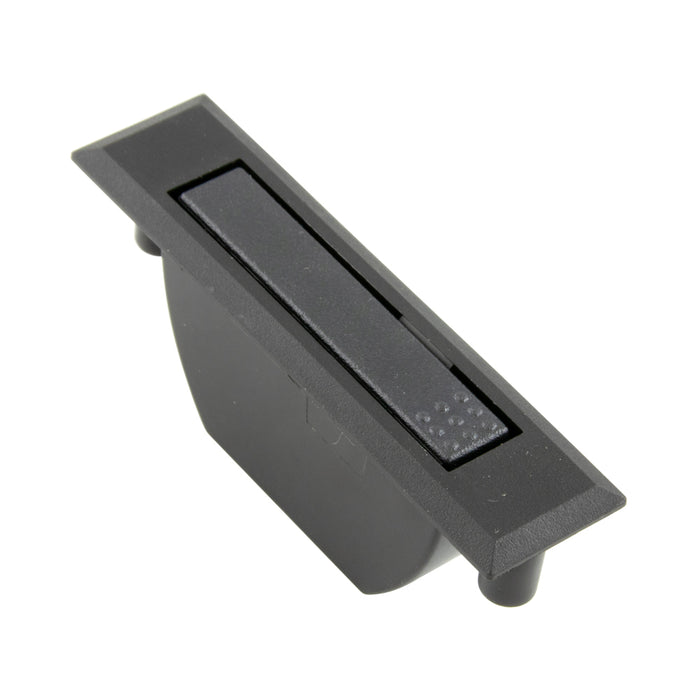

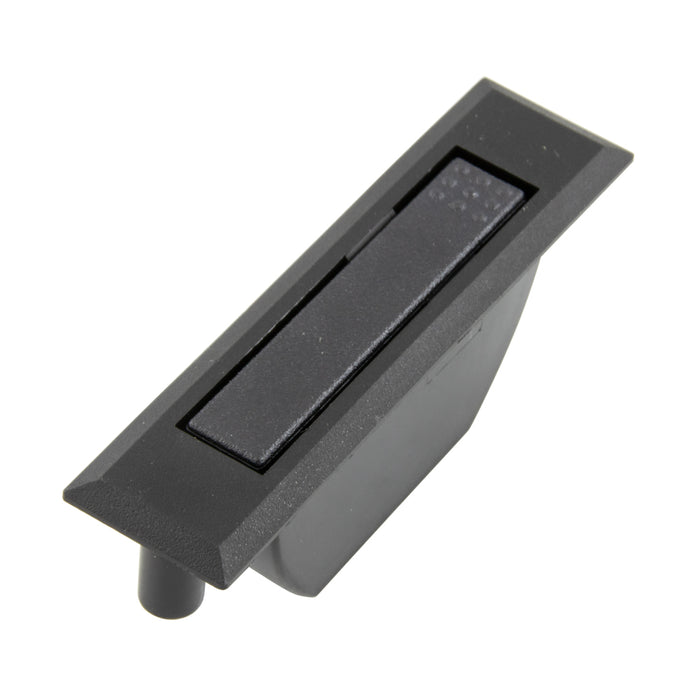

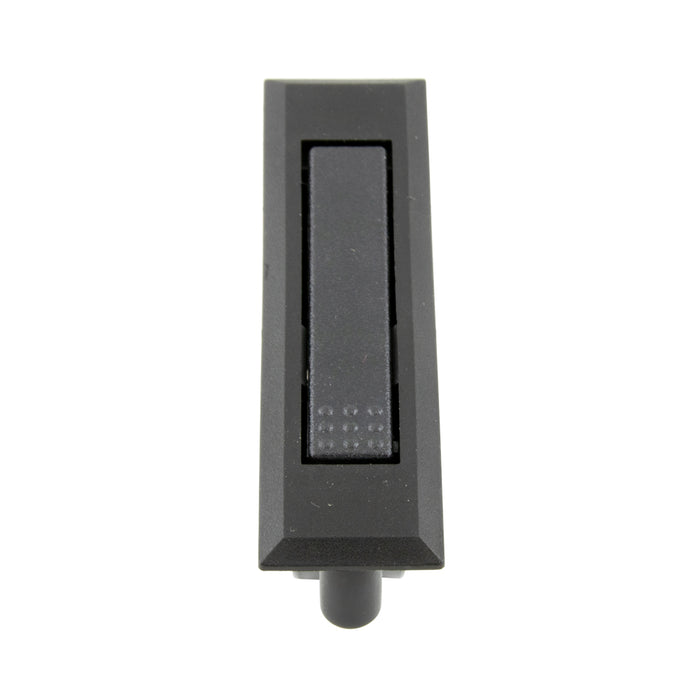

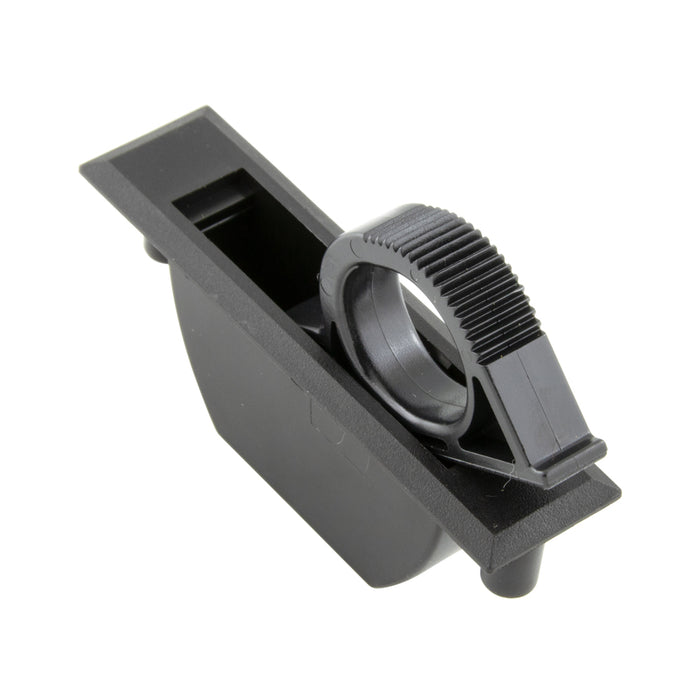

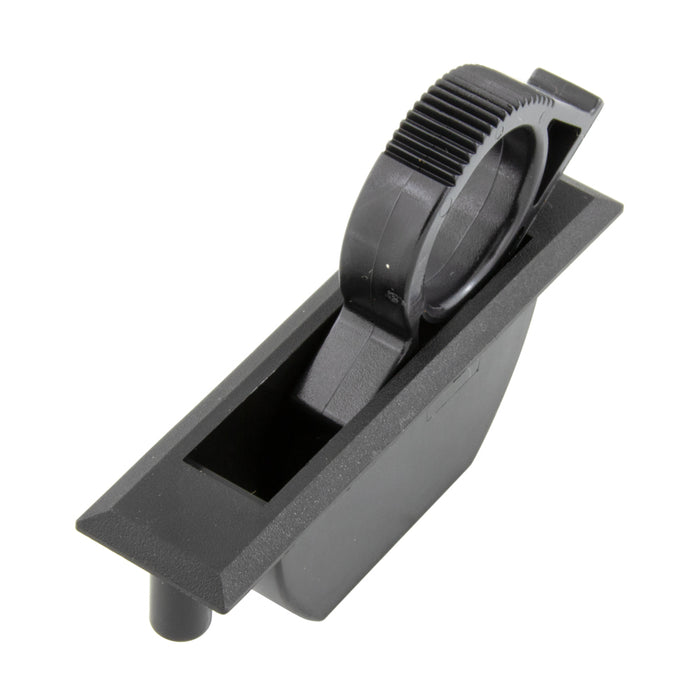

Concealed Pull, 81 mm; 3.19" Length x 20.5 mm; 0.81" Width, Polycarbonate, Black, UL94-HB, UL94-V2

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Handle Type Concealed Pull
Handle Material Polycarbonate
Finish Black
Bracket Material Plastic
Handle Colour Black
Brand Southco®
Overall Length 81 mm;3.19"
Overall Width 20.5 mm;0.81"
Total Projection 2.5 mm;0.09"
Mounting Hole Type 7.2 mm; .28 inch; M4.2 x 1.4
Includes (2) Bushings, (2) Screws
Standards Met UL94-HB, UL94-V2
