Part Number: 097-422

Push To Close Latch, Knob, Keylock, 55 mm; 2.17" Case Length x 29 (Diameter) mm; 1.13 (Diameter) in. Case Width, 0.97"-1.00"; 24.6 mm-25.4 mm Grip, 0.00"-0.50"; 0.00 mm-12.700 mm Panel THK, ABS Plastic, Passivated, Black, UL94-HB

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 097-422

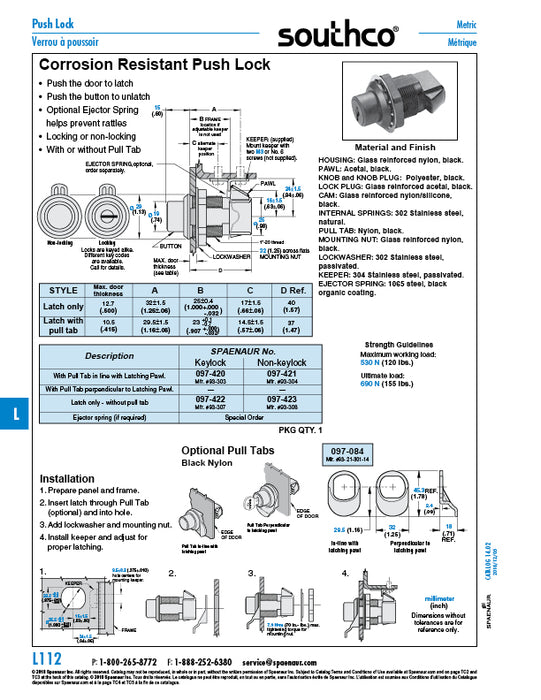

Catalog Page(s) L112
Latch Type Push to Close Latch
Material ABS Plastic
Finish Passivated
Colour Black
Brand Southco®
Handle Type Knob
Lock Type Keylock
Case Length 55 mm;2.17"
Case Width 29 (Diameter) mm;1.13 (Diameter) in.
Handle Length 15 mm;0.60"
Compatible Panel Thickness 0.00"-0.50";0.00 mm-12.700 mm
Grip 0.97"-1.00";24.6 mm-25.4 mm
Number of Mounting Holes 1
Standards Met UL94-HB
