Part Number: 097-417

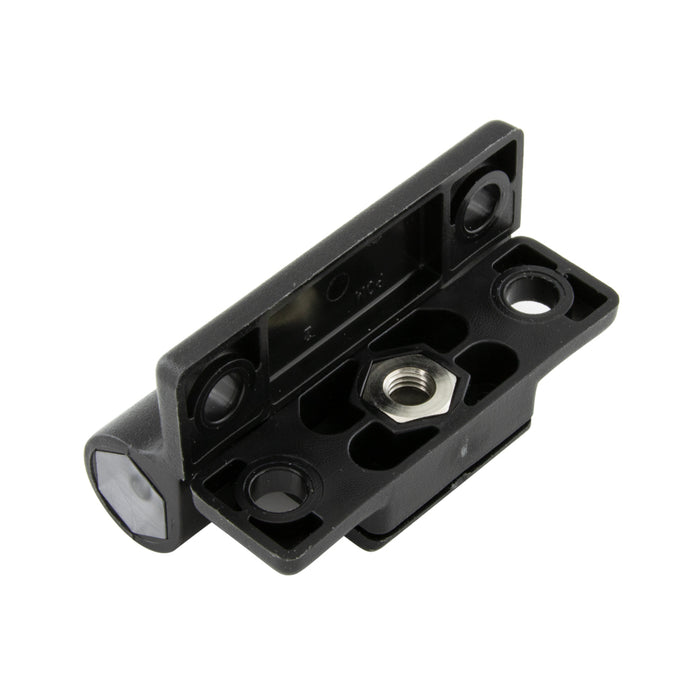

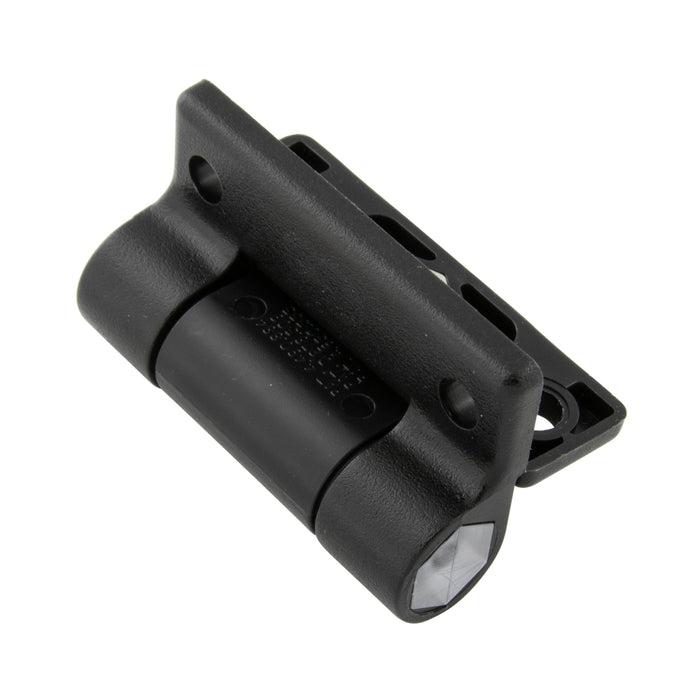

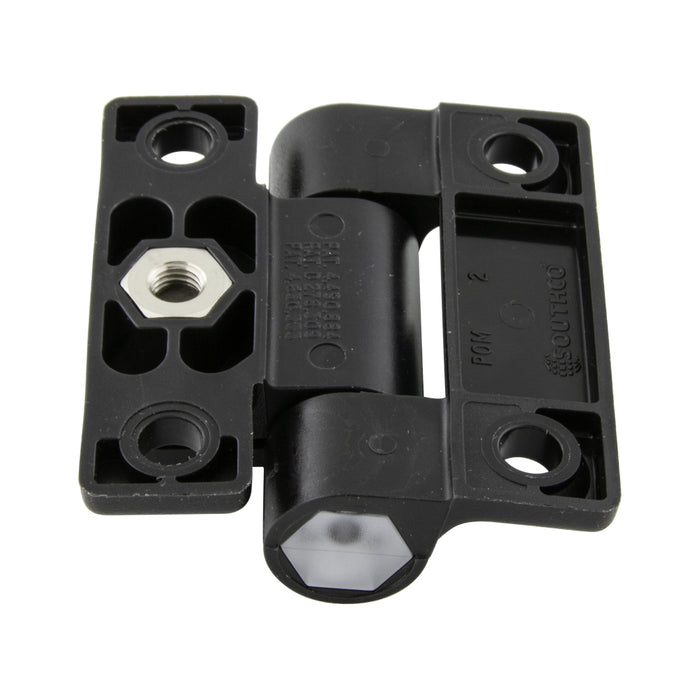

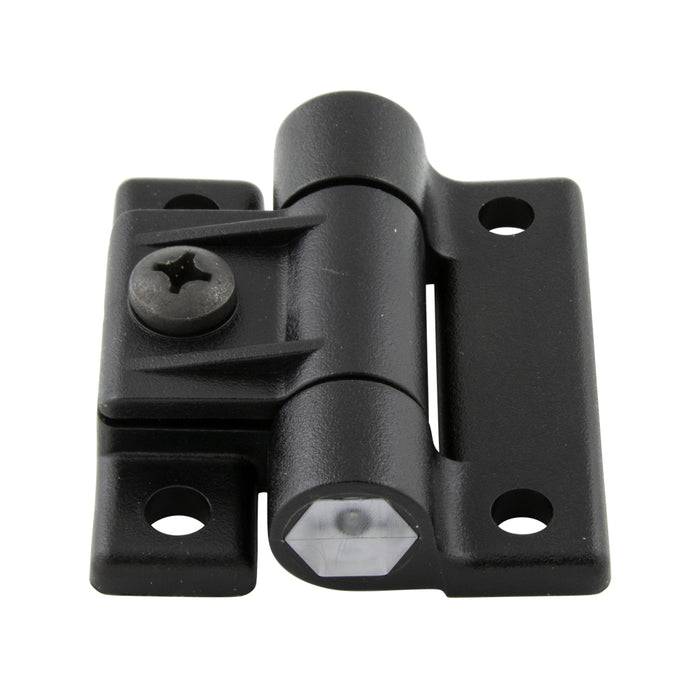

Adjustable Hinge, 1"; 25.4 mm HT x 1.2"; 30.5 mm Open Width x 1"; 25.4 mm Knuckle Length, Acetal, Black

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 097-417

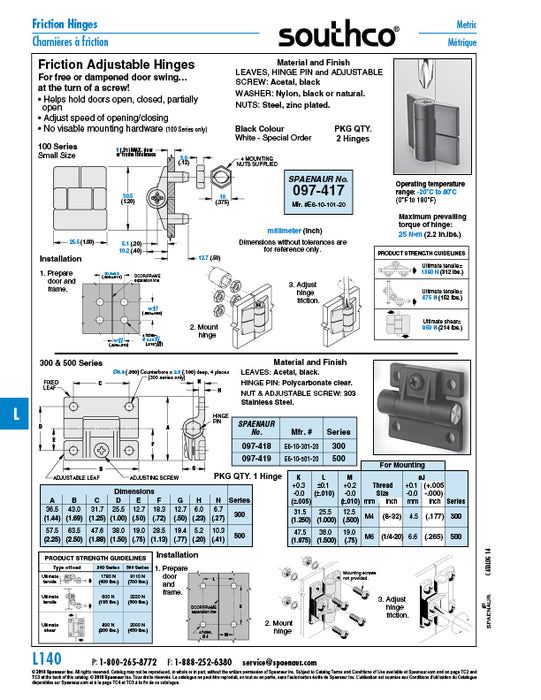

Catalog Page(s) L140
System of Measurement Metric
Brand SouthCo
Hinge Type Adjustable
Hinge Material Acetal
Hinge Finish Black
Colour Black
Brand Southco®
Overall Width (Open) 1.2";30.5 mm
Overall Height 1";25.4 mm
Knuckle Length 1";25.4 mm
Material Gauge 0.31 in.;8 mm
Pin Type Removable
Pin Material Acetal Copolymer
Number of Mounting Holes 4
Mounting Hole Type 5.41 mm;±0.1
Centre-to-Centre Distance Between Mounting Holes (Length) 15 mm;+0.3 mm;-0.1 mm
Centre-to-Centre Distance Between Mounting Holes (Width) 20.32 mm;±0.2 mm
Includes (1) Torque Adjusting Screw, Pin
