Part Number: 086-F01-1Y

Legacy Part Number(s): C-951PC

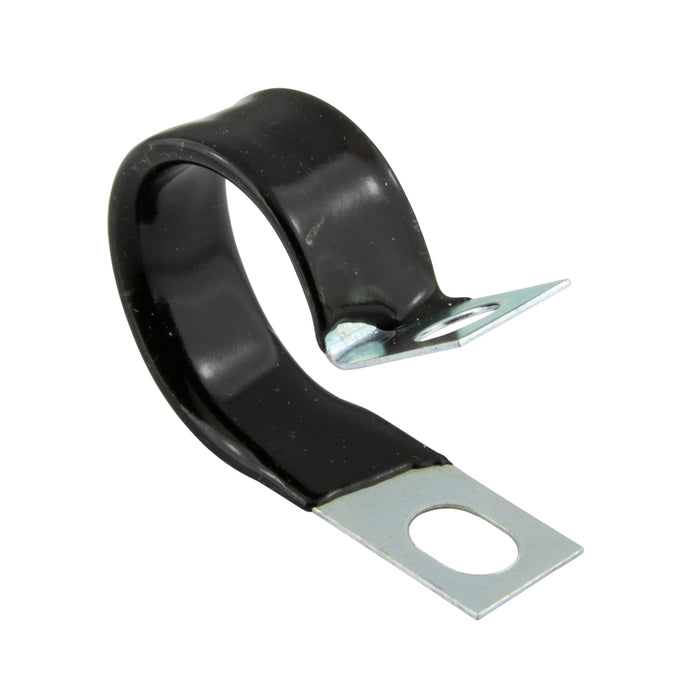

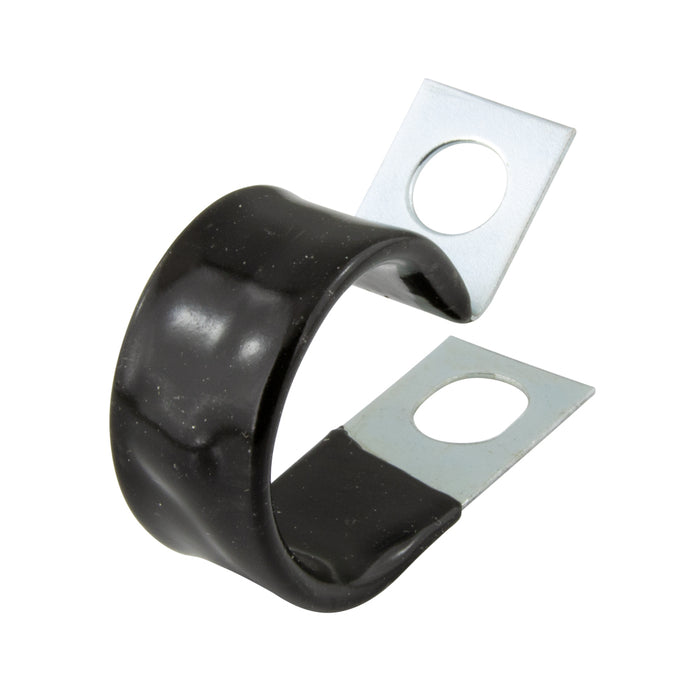

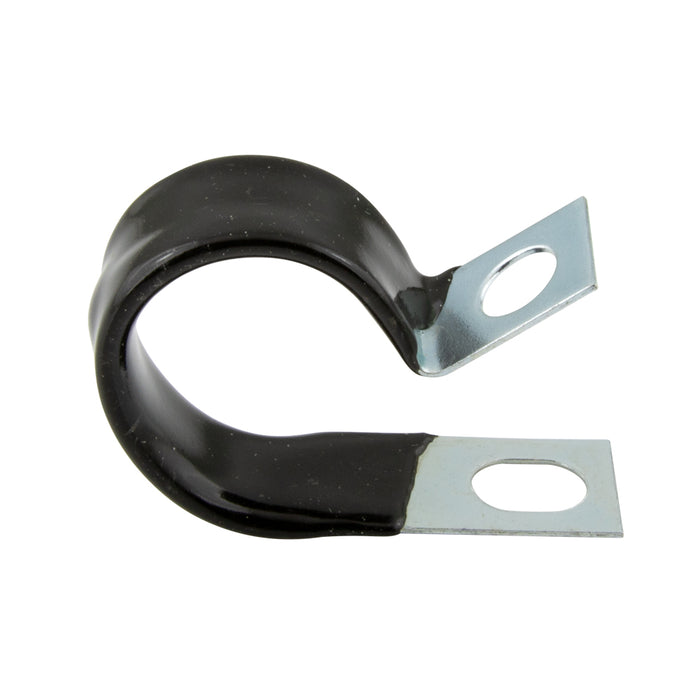

Cable & Wire Clip, Light-Duty Closed Type - Furnished Open, 3/8" Dia Capacity, .593" C To C Steel Zinc With Clear Chromate Black Vinyl Cushion

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 086-F01-1Y

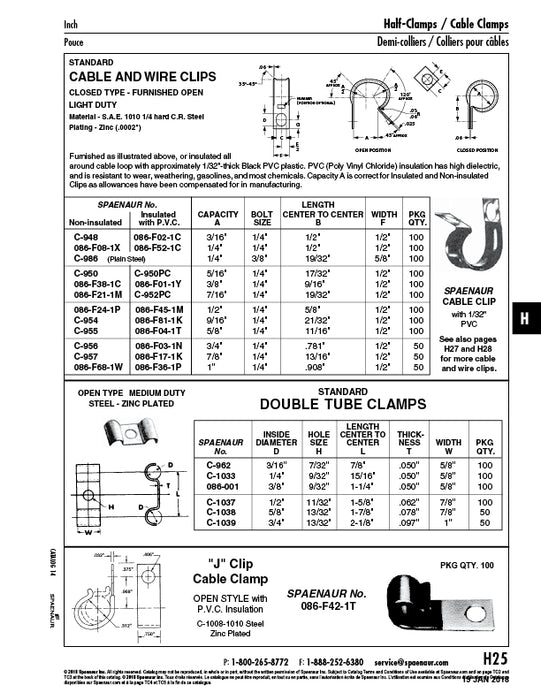

Catalog Page(s) H25
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number C-951PC
Number of Cables Accommodated 1
Material Steel
Material Grade G90
Finish Zinc with Clear Chromate
Compatible Conduit Diameter 3/8"
Colour Black
Hole Centre to Tube Centre Length 0.593"; ±0.031"
Overall Width 0.500"; ±0.010"
Mounting Hole Diameter 0.281"; ±0.005"
Clamp Material Gauge 0.025"
Resistance Features Chemical-Resistant, Gasoline-Resistant
Coating Vinyl Plastisol
Coating Material Thickness 1/32"; 0.032"; ±0.015"
Standards Met ASTM A653/A653M, ASTM D2287, SAE J200
