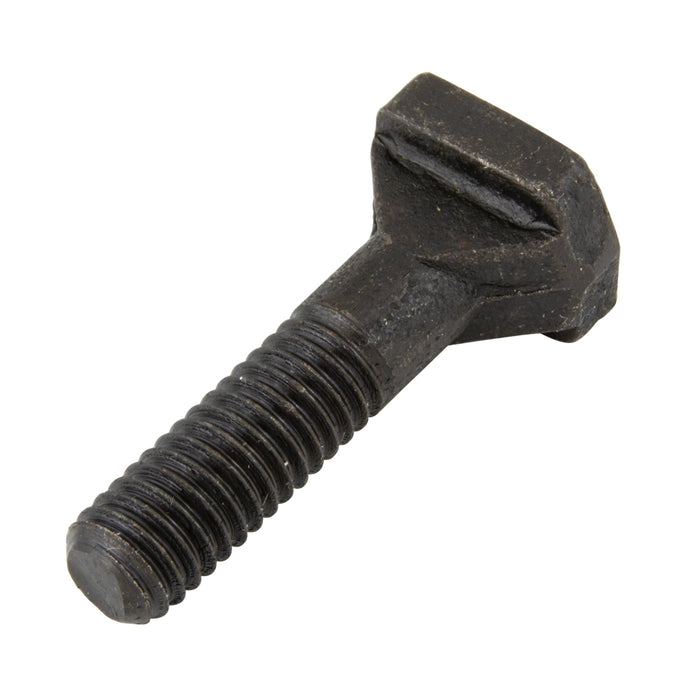

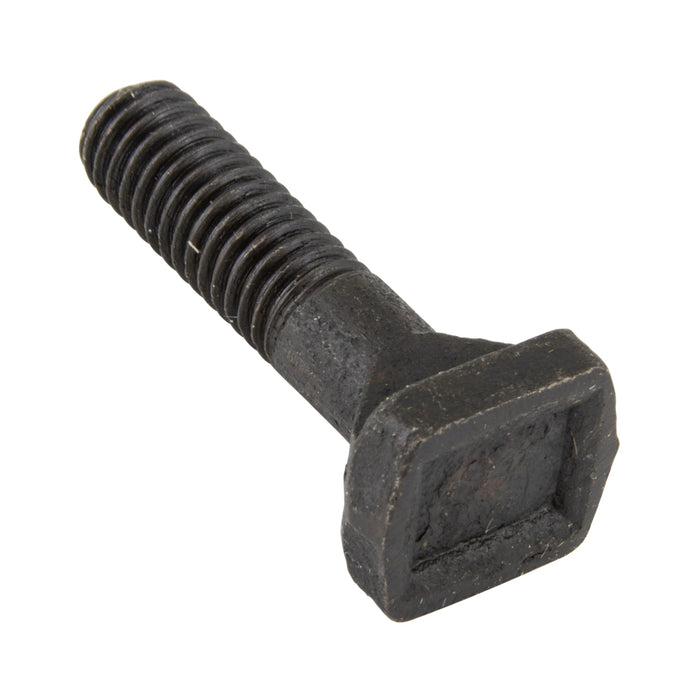

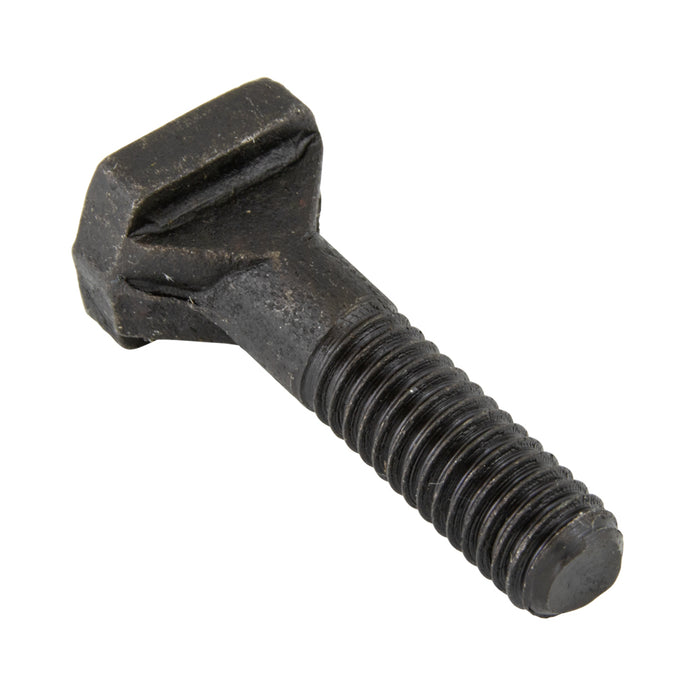

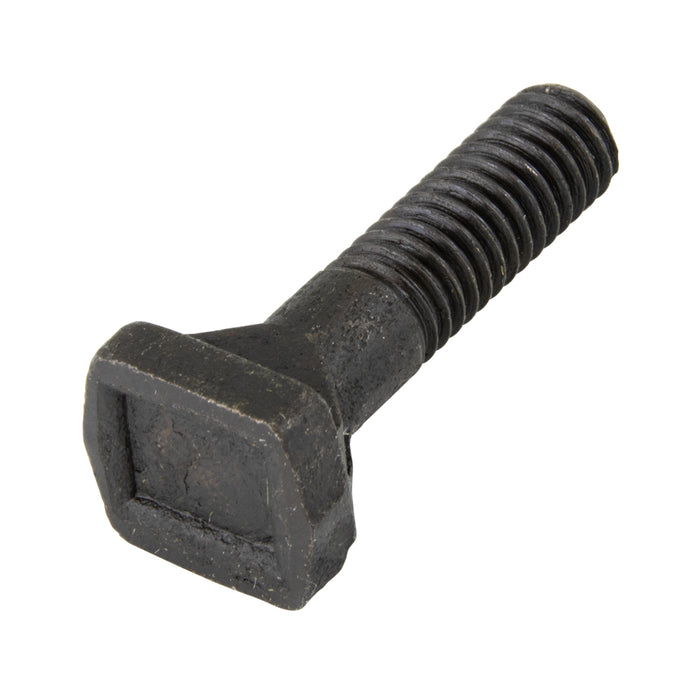

T-Slot Bolt DIN 787 M24 x 28 x 250 8.8 Steel DIN 787/8.8 M24X28X250 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 070-116

T-Slot Bolt DIN 787 M24 x 28 x 250 8.8 Steel DIN 787/8.8 M24X28X250

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 070-116

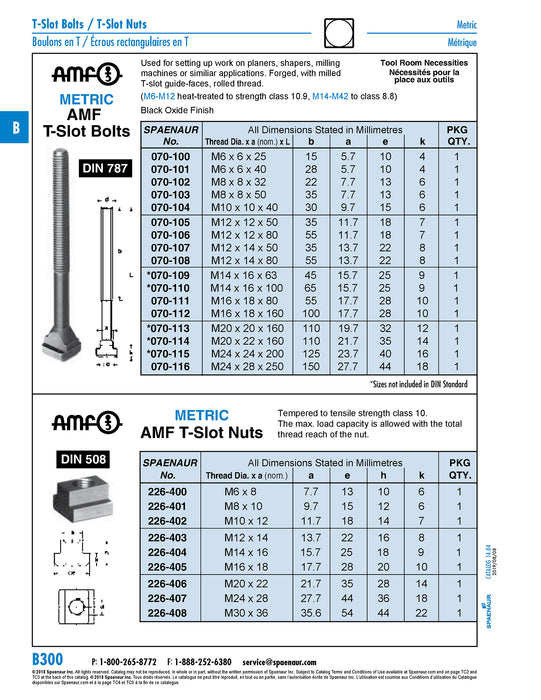

Catalog Page(s) B300
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Material Steel
Head Height 18 mm
Head Length 250 mm
Head Width 44 mm
Length Under Head 250 mm
Slot Width 27.7 x 28 (nom.) mm
Thread Size M24
Thread Length 150 mm
Hardness HRC 23 to HRC 34
Tensile Strength 8.8 kN
Standard DIN 787
