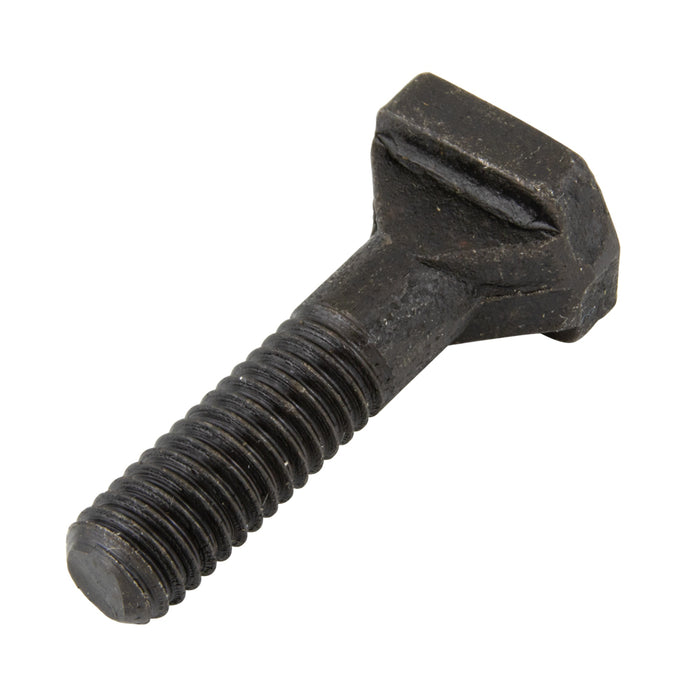

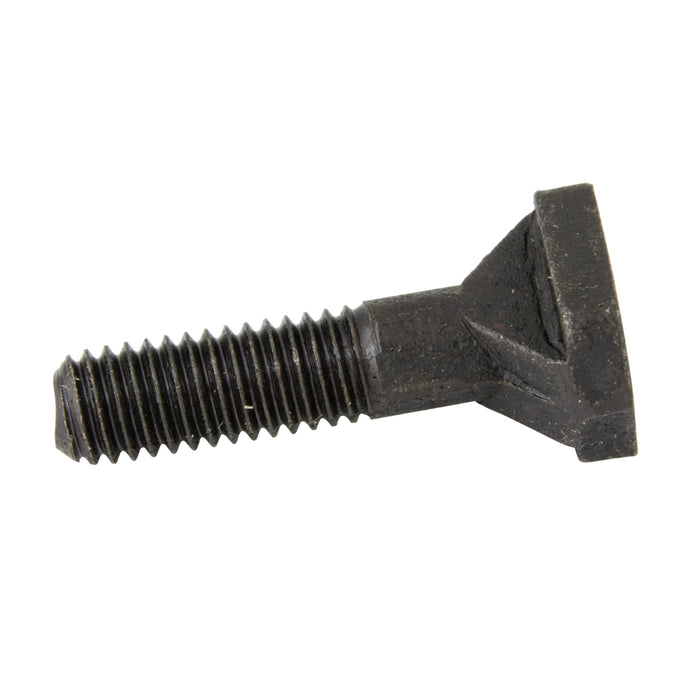

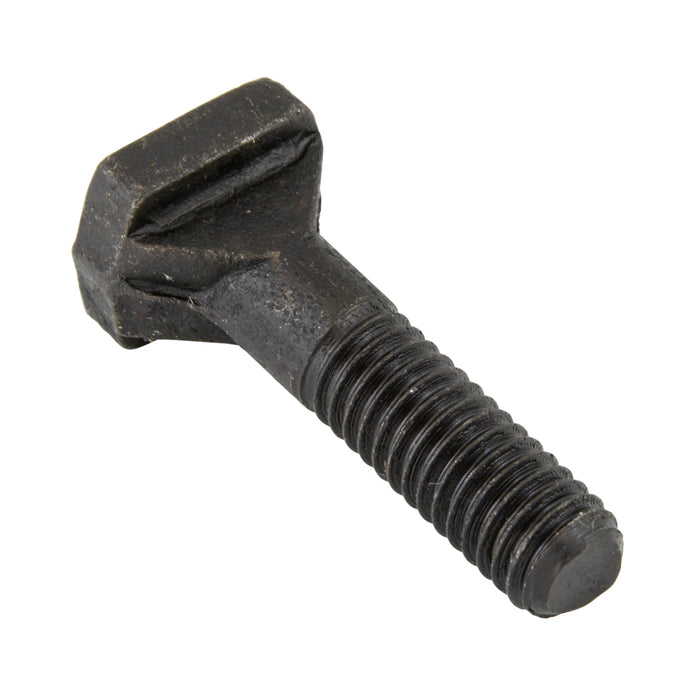

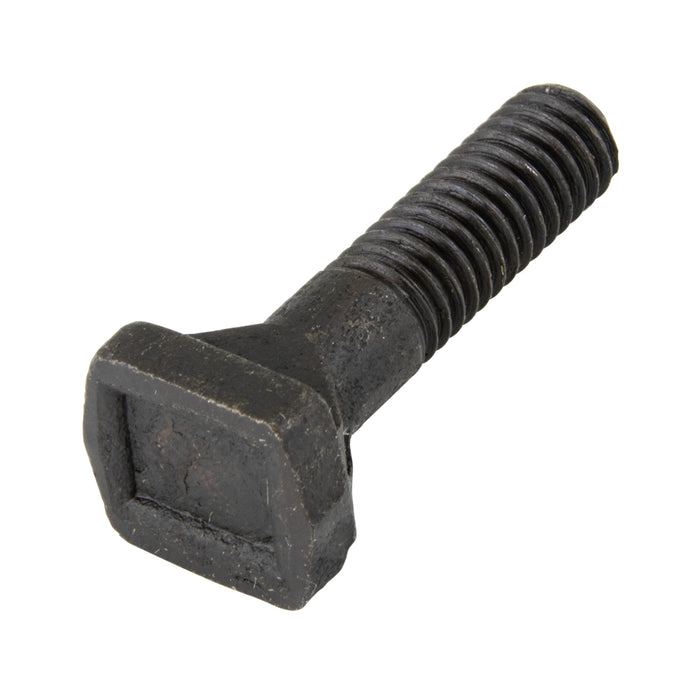

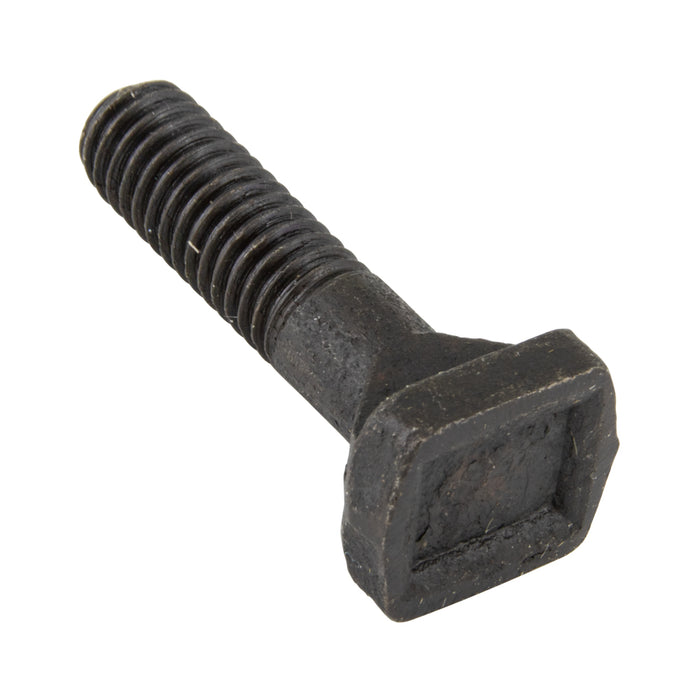

T-Slot Bolt DIN 787 M24 x 24 x 200 8.8 Steel DIN 787/8.8 M24X24X200

Part Number: 070-115

T-Slot Bolt DIN 787 M24 x 24 x 200 8.8 Steel DIN 787/8.8 M24X24X200

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 070-115

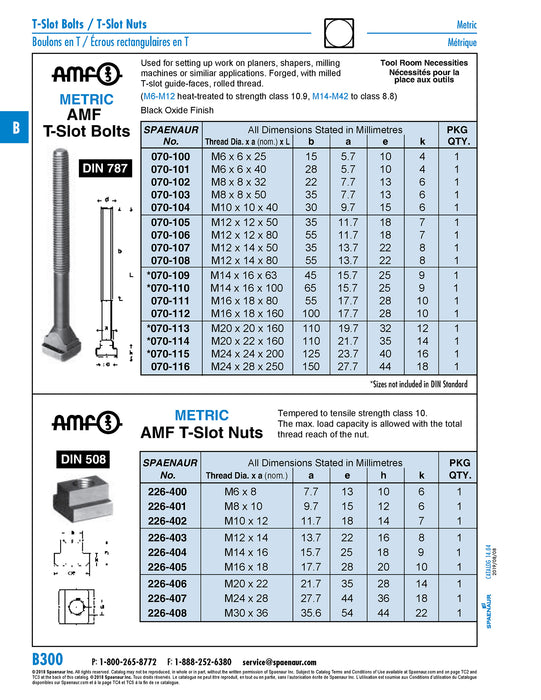

Catalog Page(s) B300
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Material Steel
Head Height 16 mm
Head Length 200 mm
Head Width 40 mm
Length Under Head 200 mm
Slot Width 23.7 x 24 (nom.) mm
Thread Size M24
Thread Length 125 mm
Hardness HRC 23 to HRC 34
Tensile Strength 8.8 kN
Standard DIN 787
