T-Slot Bolt DIN 787 M20 x 20 x 160 8.8 Steel DIN 787/8.8 M20X20X160 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 070-113

T-Slot Bolt DIN 787 M20 x 20 x 160 8.8 Steel DIN 787/8.8 M20X20X160

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 070-113

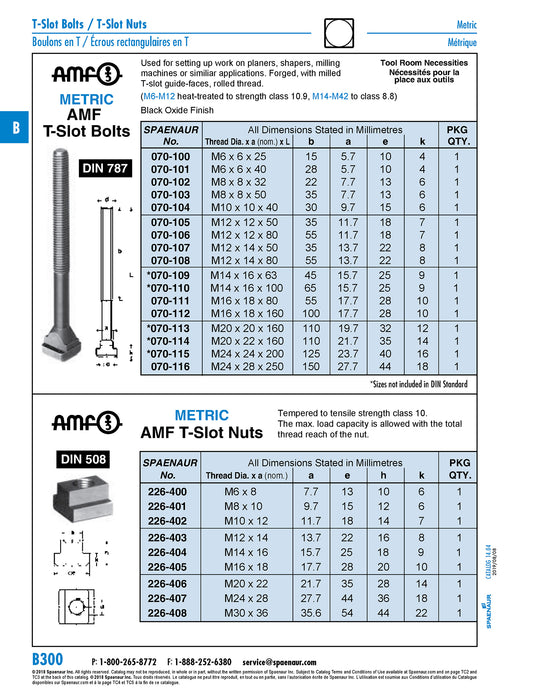

Catalog Page(s) B300
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Material Steel
Finish Black Oxide
Material Grade | Material Class Class 8.8
Head Height 12 mm
Head Length 160 mm
Head Width 32 mm
Length Under Head 160 mm
Slot Width 19.7 x 20 (nom.) mm
Thread Size M20
Thread Length 110 mm
Standard DIN 787
