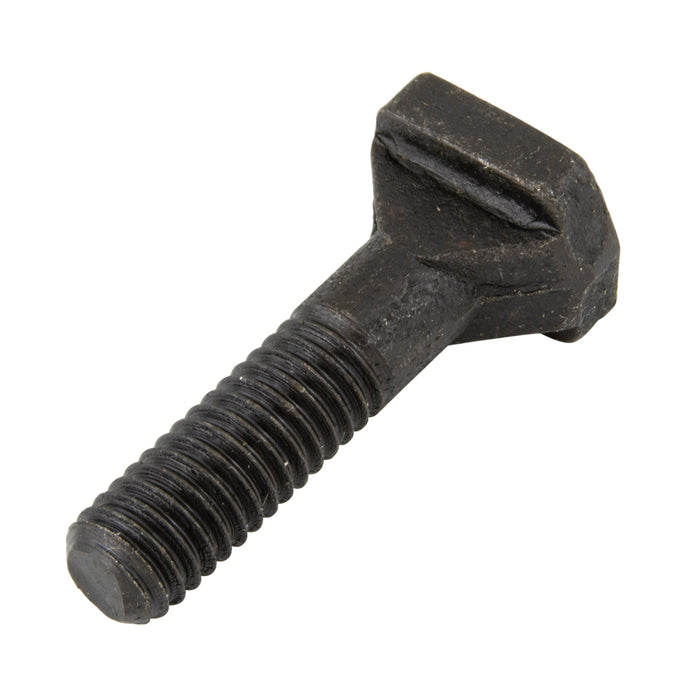

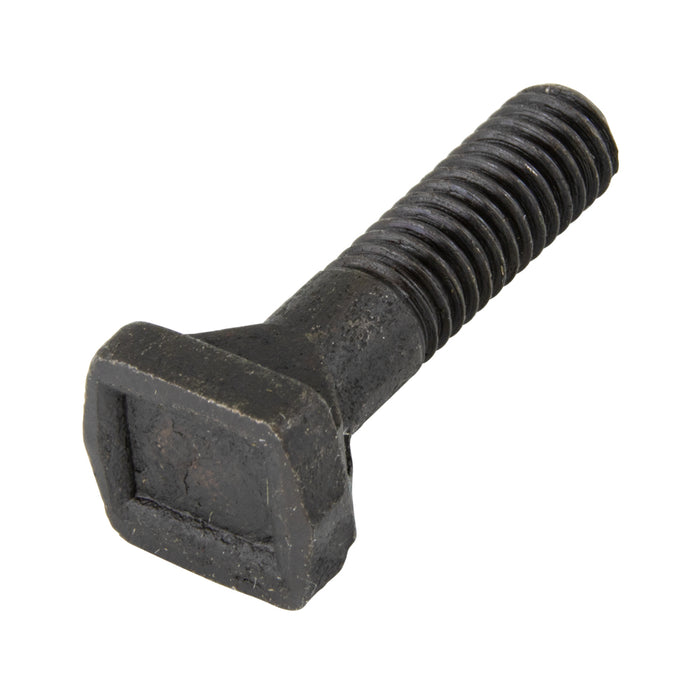

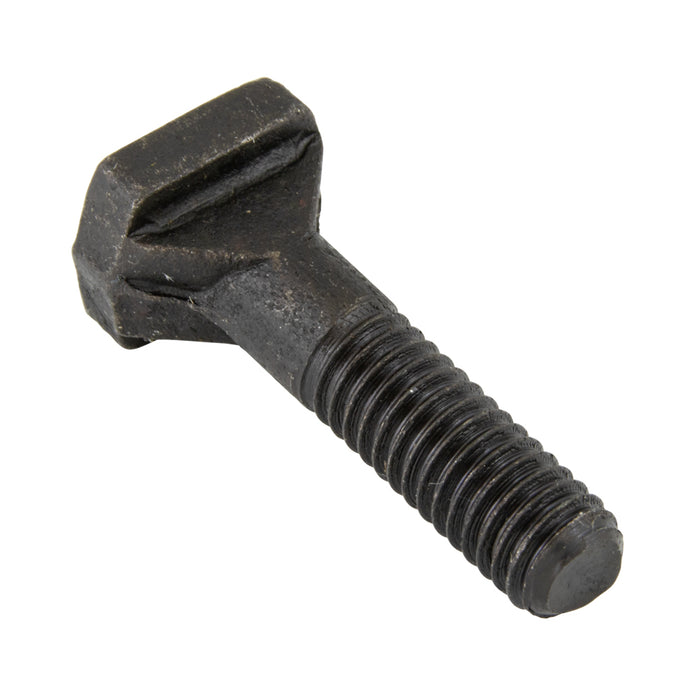

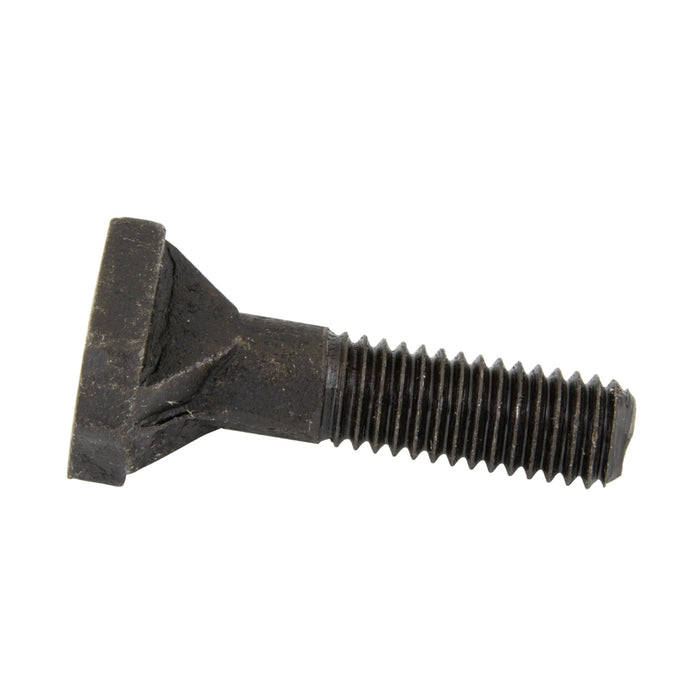

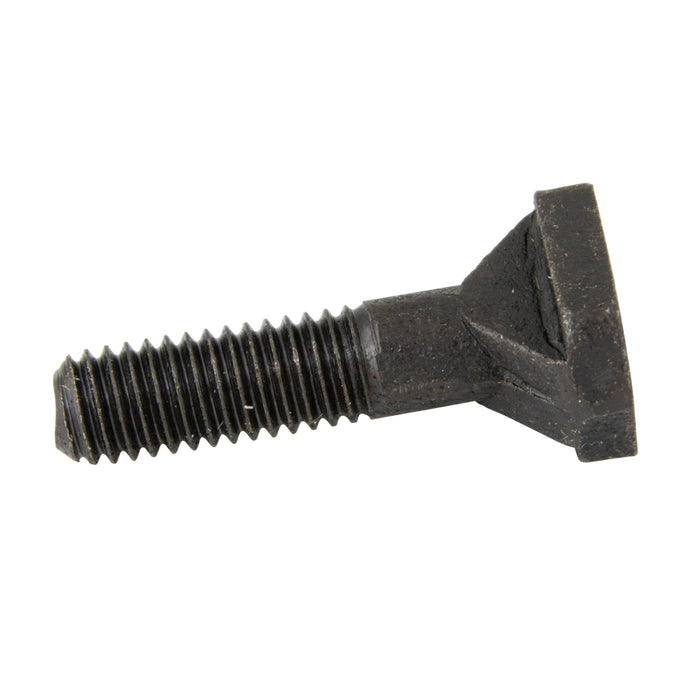

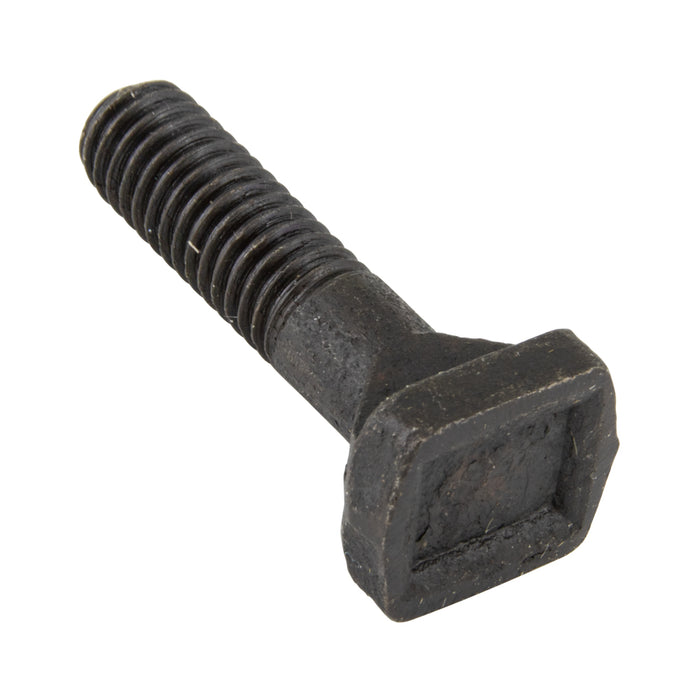

T-Slot Bolt DIN 787 M10 x 10 x 40 10.9 Steel DIN 787/10.9 M10X10X40

*Representative images - please refer to the product specifications for exact product information

Part Number: 070-104

T-Slot Bolt DIN 787 M10 x 10 x 40 10.9 Steel DIN 787/10.9 M10X10X40

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 070-104

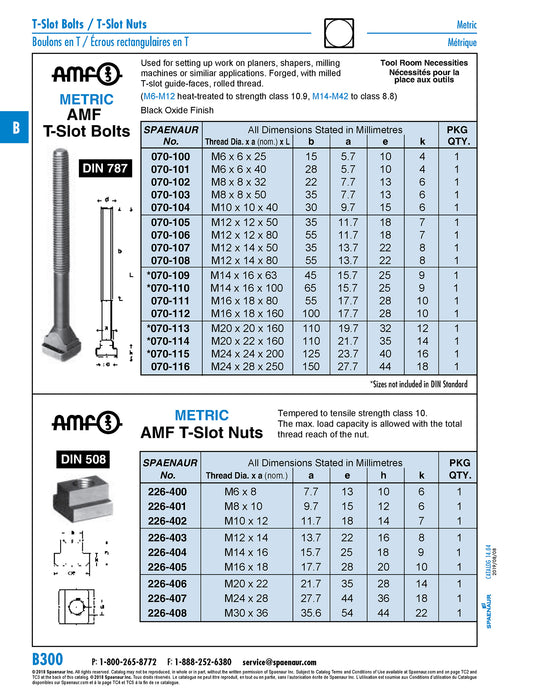

Catalog Page(s) B300
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Material Steel
Head Height 6 mm
Head Length 40 mm
Head Width 15 mm
Length Under Head 40 mm
Slot Width 9.7 x 10 (nom.) mm
Thread Size M10
Thread Length 30 mm
Hardness HRC 32 to HRC 39
Tensile Strength 10.9 kN
Standard DIN 787
