Carriage Bolt W/Hex Nut DIN 603/555 M8 x 1.25 x 20mm LG 4.6 Steel Zinc Plated DIN 603/555/4.6-ZP M8X20 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 015-080ZP

Carriage Bolt W/Hex Nut DIN 603/555 M8 x 1.25 x 20mm LG 4.6 Steel Zinc Plated DIN 603/555/4.6-ZP M8X20

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 015-080ZP

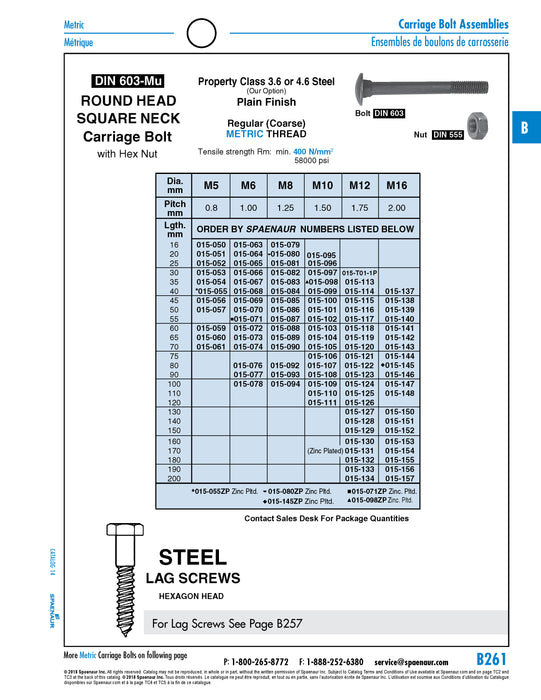

Catalog Page(s) B261
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Material Steel
Finish Zinc Plated
Material Grade | Material Class Grade 4.6
Head Type Round Head
Thread Size M8 x 1.25 mm
Thread Class 6G
Length Under Head 20 mm
Includes Hex Nut Yes
Standard ~CSN 021319, ~UNI 5732, DIN 555 Nut, DIN 603 Bolt
