Disc Spring DIN 2093 AM-83202 8mm OD x 3.2mm ID x 0.2mm TH Spring Steel Heat Treated Self-Colored DIN 2093 8X3.2X0.2 by Spaenaur Inc.

Part Number: 681-D09-1C

Legacy Part Number(s): 681-201

Disc Spring DIN 2093 AM-83202 8mm OD x 3.2mm ID x 0.2mm TH Spring Steel Heat Treated Self-Colored DIN 2093 8X3.2X0.2

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-D09-1C

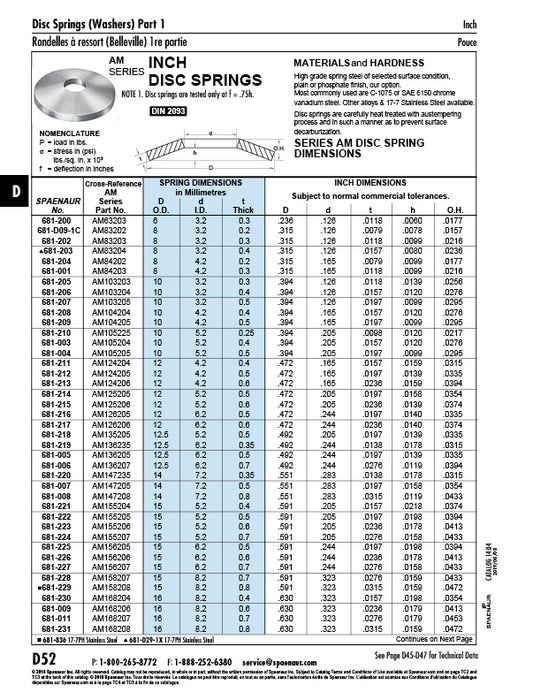

Catalog Page(s) D52,D53
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 681-201
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 3 mm
Inside Diameter 0.126";+0.005";3.2 mm;+0.127 mm
Outside Diameter 0.315";-0.006";8 mm;-0.152 mm
Thickness 0.0079";0.2 mm
Overall Height 0.0157"
Height 0.0636"
Standard DIN 2093
