Disc Spring DIN 2093 AM-1507160 150mm OD x 71mm ID x 6.0mm TH Spring Steel Heat Treated Plain DIN 2093 150X71X6.0 by Spaenaur Inc.

Part Number: 681-387

Disc Spring DIN 2093 AM-1507160 150mm OD x 71mm ID x 6.0mm TH Spring Steel Heat Treated Plain DIN 2093 150X71X6.0

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-387

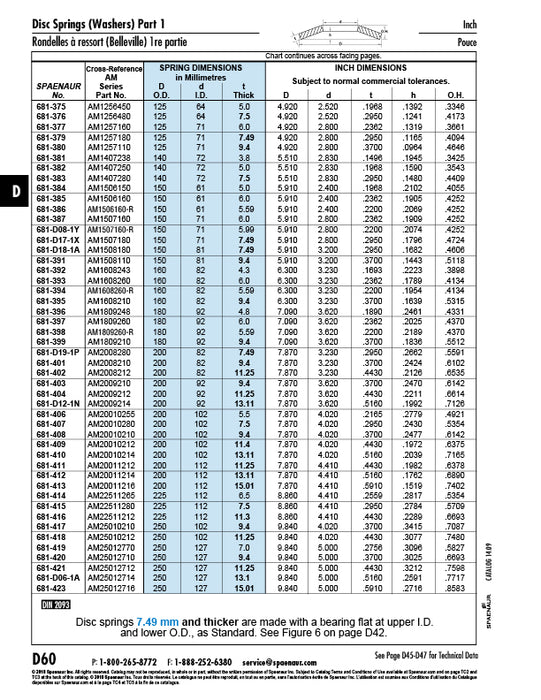

Catalog Page(s) D60,D61
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 70 mm
Inside Diameter 71 mm
Outside Diameter 150 mm
Thickness 6.0 mm
Overall Height 10.85 mm
Standard SAE 6150
