Disc Spring Metric DIN 2093 AM-633130 63mm OD x 31mm ID x 3.0mm TH Spring Steel Heat Treated Self-Colour DIN 2093 63X31X3.0 by Spaenaur Inc.

Part Number: 681-329

Disc Spring Metric DIN 2093 AM-633130 63mm OD x 31mm ID x 3.0mm TH Spring Steel Heat Treated Self-Colour DIN 2093 63X31X3.0

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-329

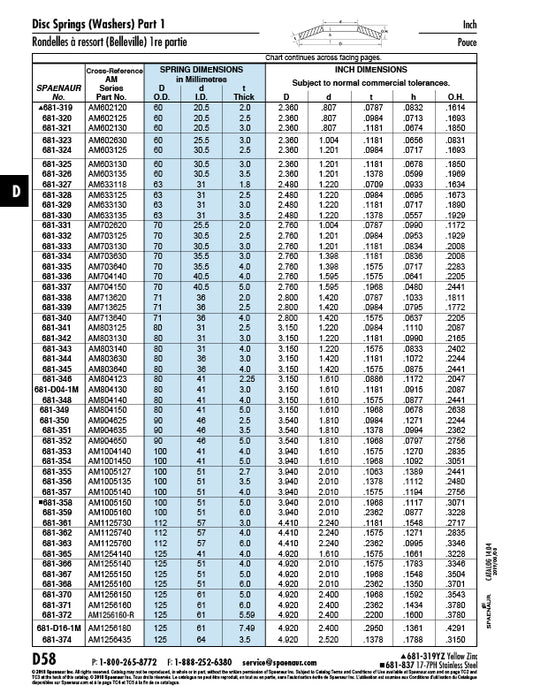

Catalog Page(s) D58,D59
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 30 mm
Inside Diameter 31 mm
Outside Diameter 63 mm
Thickness 3.0 mm
Overall Height 4.7 mm
Standard SAE 6150
