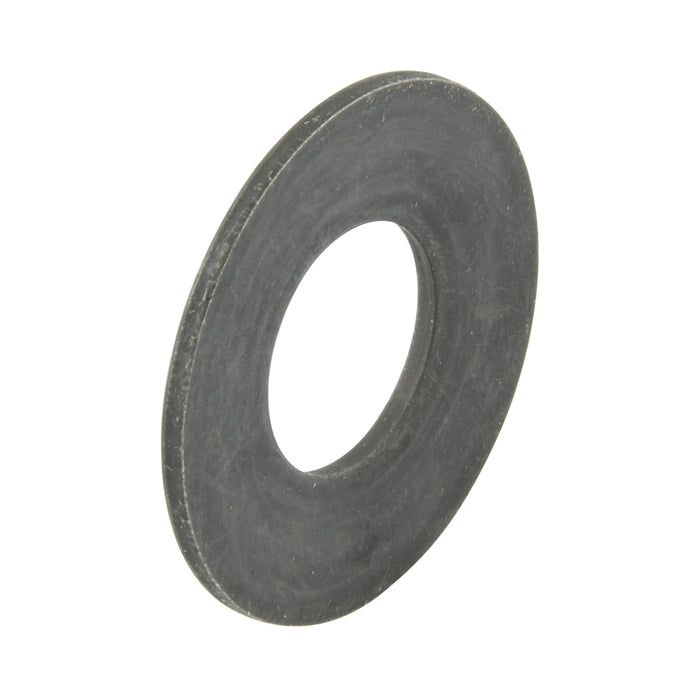

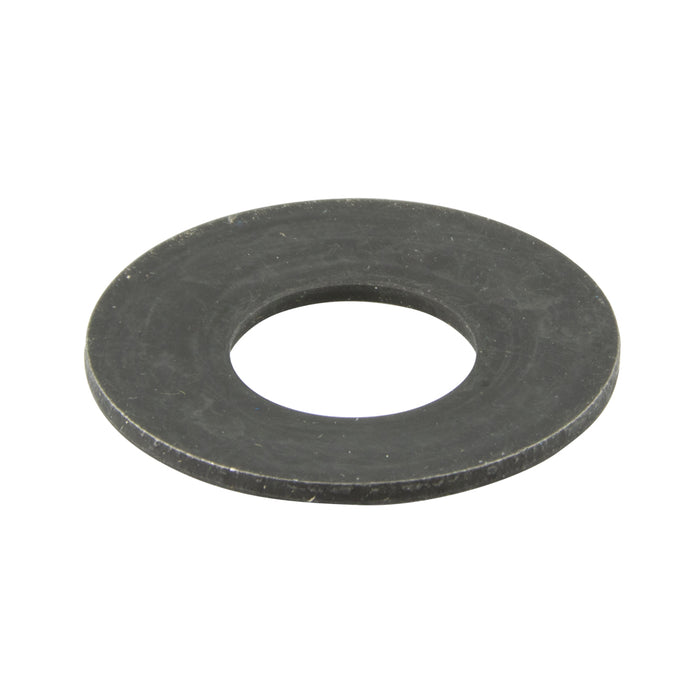

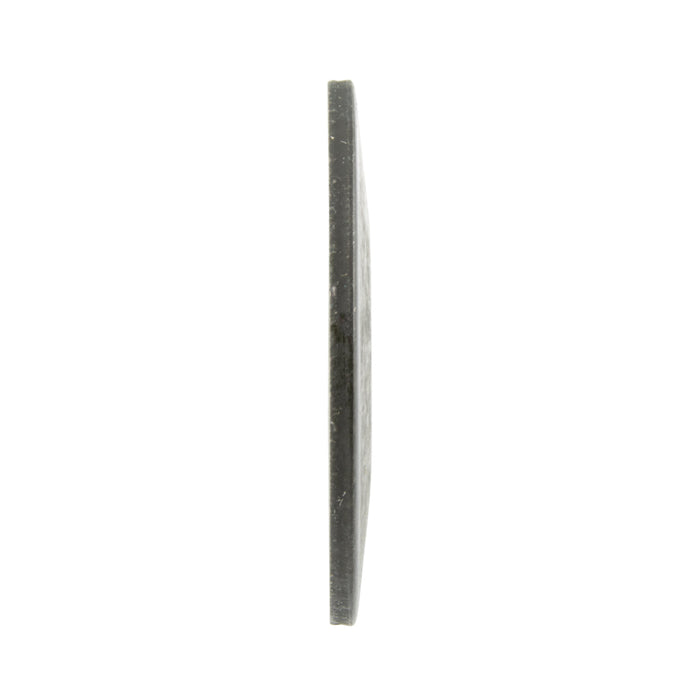

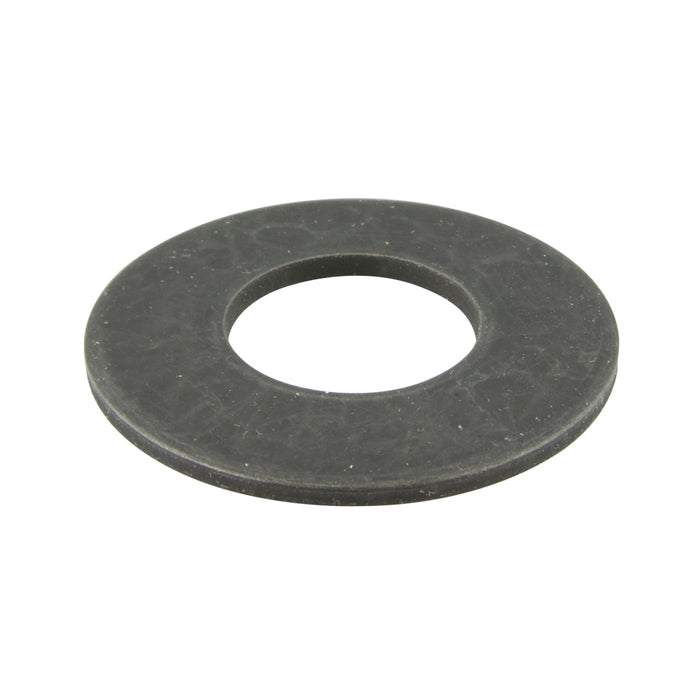

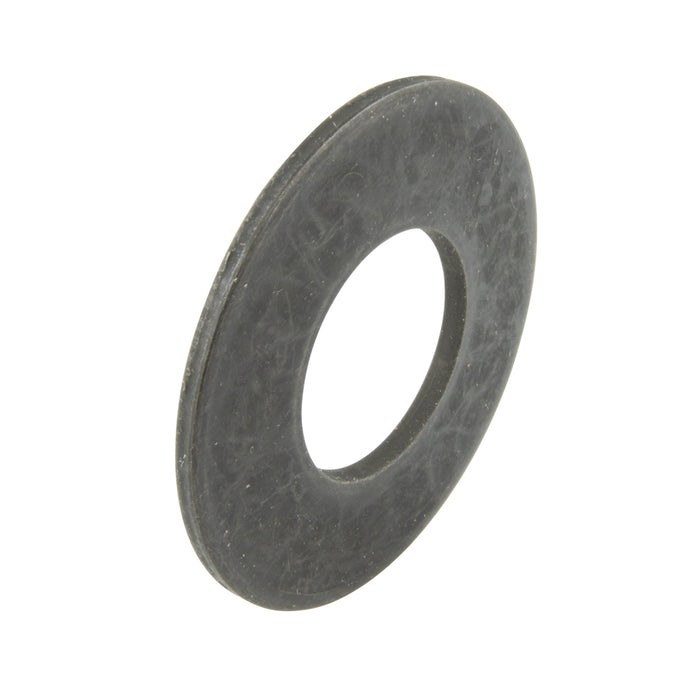

Disc Spring DIN 2093C AM-502513 50mm OD x 25.4mm ID x 1.25mm THK Chrome Vanadium Steel Self-Colour DIN 2093 50X25.4X1.25

Part Number: 681-310

Disc Spring DIN 2093C AM-502513 50mm OD x 25.4mm ID x 1.25mm THK Chrome Vanadium Steel Self-Colour DIN 2093 50X25.4X1.25

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-310

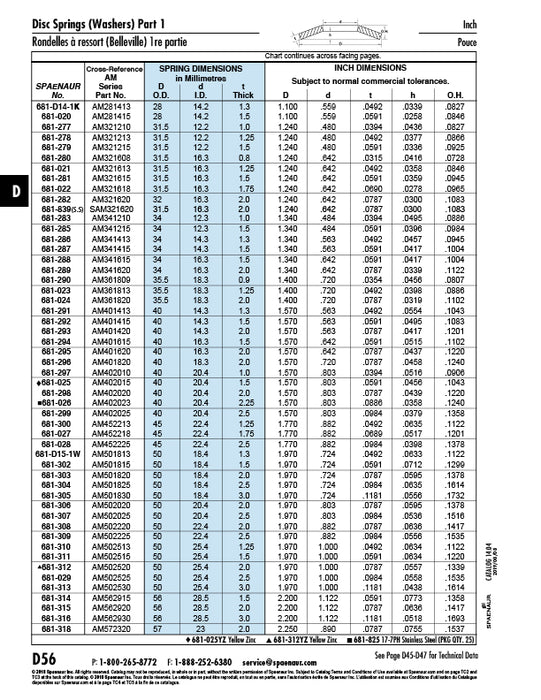

Catalog Page(s) D56,D57
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Chrome Vanadium Steel
Finish Plain
Compatible Hole Size 25 mm
Inside Diameter 25.4 mm
Outside Diameter 50 mm
Thickness 1.25 mm
Overall Height 2.85 mm
Standard DIN 2093
