Disc Spring DIN 2093 AM-502220 50mm OD x 22.4mm ID x 2.0mm TH Spring Steel Heat Treated Plain DIN 2093 50X22.4X2.0 by Spaenaur Inc.

Part Number: 681-308

Disc Spring DIN 2093 AM-502220 50mm OD x 22.4mm ID x 2.0mm TH Spring Steel Heat Treated Plain DIN 2093 50X22.4X2.0

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-308

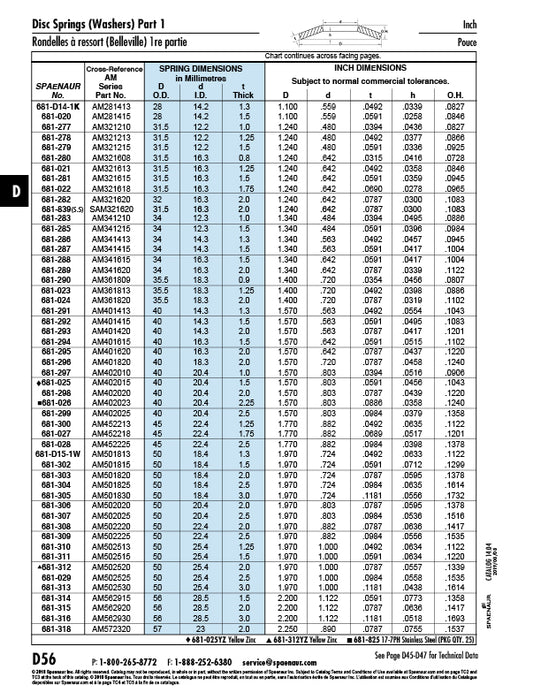

Catalog Page(s) D56,D57
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 22 mm
Inside Diameter 0.882";+0.008";22.403 mm;+0.203 mm
Outside Diameter 1.970";-0.010";50.038 mm;-0.305 mm
Thickness 0.079";0.002";1.999 mm;0.051 mm
Overall Height 0.142";+0.012";-0.006";3.599 mm;+0.30 mm;-0.15 mm
Standard SAE 6150
