Disc Spring DIN 2093 AM-501820 50mm OD x 18.4mm ID x 2.0mm TH Spring Steel Heat Treated Plain by Spaenaur Inc.

Part Number: 681-303

Disc Spring DIN 2093 AM-501820 50mm OD x 18.4mm ID x 2.0mm TH Spring Steel Heat Treated Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-303

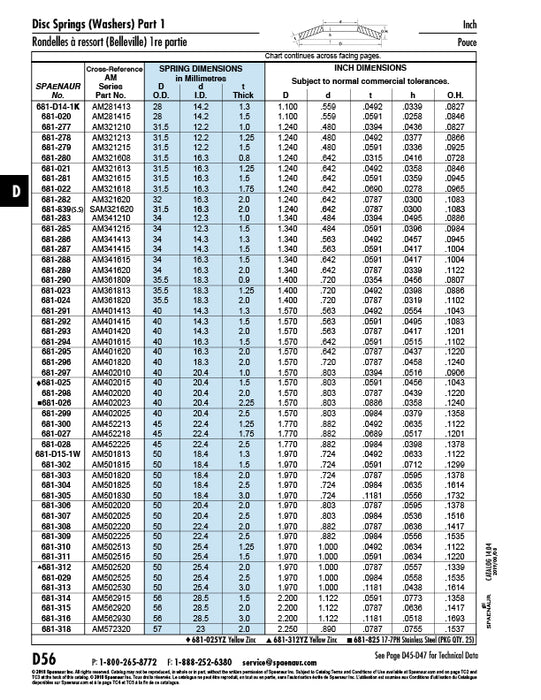

Catalog Page(s) D56,D57
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 18 mm
Inside Diameter 18.4 mm
Outside Diameter 50 mm
Thickness 2.0 mm
Overall Height 3.65 mm
Standard SAE 6150
