Disc Spring DIN 2093 AM-401413 40mm OD x 14.3mm ID x 1.3mm TH Spring Steel Heat Treated Plain DIN 2093 40X14.3X1.3

Part Number: 681-291

Disc Spring DIN 2093 AM-401413 40mm OD x 14.3mm ID x 1.3mm TH Spring Steel Heat Treated Plain DIN 2093 40X14.3X1.3

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-291

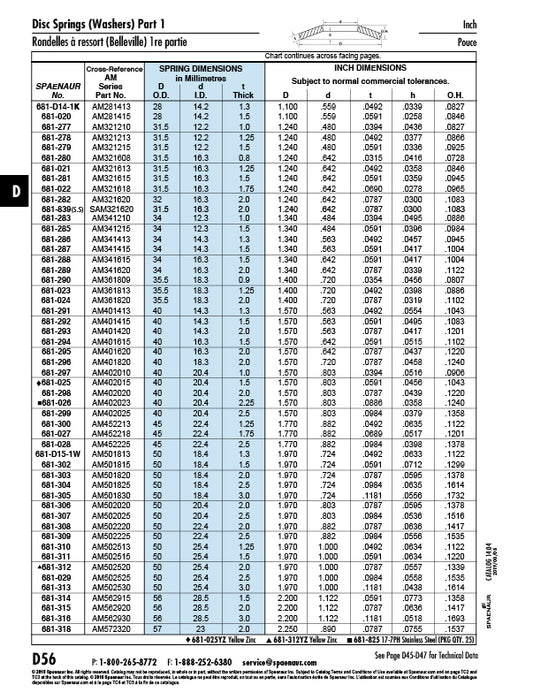

Catalog Page(s) D56,D57
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 14 mm
Inside Diameter 0.563";+0.007";14.300 mm;+0.178 mm
Outside Diameter 1.570";-0.010";39.878 mm;-0.254 mm
Thickness 0.049";0.002";1.250 mm;0.051 mm
Overall Height 0.104";+0.012";-0.004";2.649 mm;+0.30 mm;-0.10 mm
Height 0.1361"
Standard SAE 6150
