Disc Spring DIN 2093 AM-321210 31.5mm OD X12.2mm ID X1.0mm TH Spring Steel Heat Treated Plain DIN 2093 32X12.2X1.0

Part Number: 681-277

Disc Spring DIN 2093 AM-321210 31.5mm OD X12.2mm ID X1.0mm TH Spring Steel Heat Treated Plain DIN 2093 32X12.2X1.0

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-277

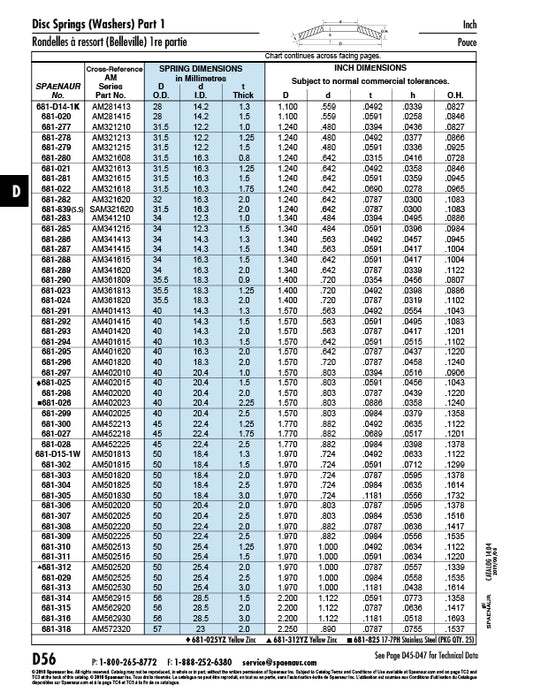

Catalog Page(s) D56,D57
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 12 mm
Inside Diameter 0.480";+0.007";12.2 mm;+0.178 mm
Outside Diameter 1.240";-0.010";31.5 mm;-0.254 mm
Thickness 0.0934";+0.0016";-0.0047";1.0 mm;+0.03 mm;-0.09 mm
Overall Height 0.0827"
Height 0.0279"
Standard SAE 6150
