Disc Spring DIN 2093 AM-231215 23mm OD x 12.2mm ID x 1.5mm TH Spring Steel Heat Treated Plain DIN 2093 23X12.2X1.5 by Spaenaur Inc.

Part Number: 681-263

Disc Spring DIN 2093 AM-231215 23mm OD x 12.2mm ID x 1.5mm TH Spring Steel Heat Treated Plain DIN 2093 23X12.2X1.5

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-263

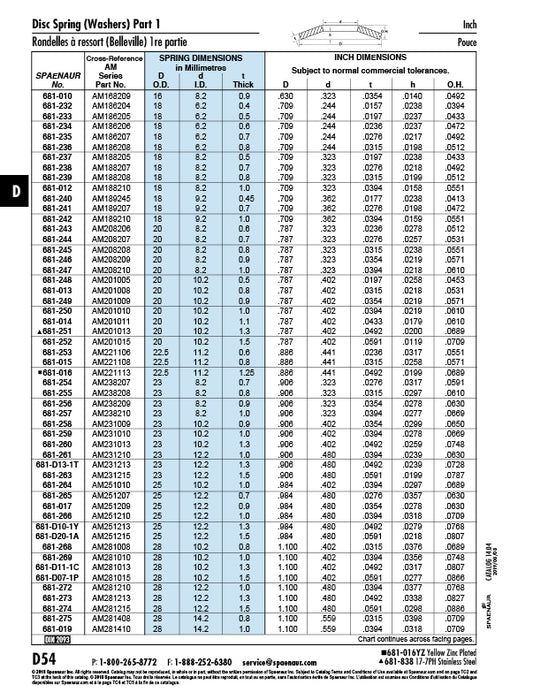

Catalog Page(s) D54,D55
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 12 mm
Inside Diameter 0.480";+0.007";12.192 mm;+0.178 mm
Outside Diameter 0.906";-0.008";23.012 mm;-0.203 mm
Thickness 0.059";0.002";1.501 mm;0.051 mm
Overall Height 0.079";+0.012";-0.004";1.999 mm;+0.15 mm;-0.08 mm
Height 0.1072"
Standard SAE 6150
