Disc Spring DIN 2093 AM-208209 20mm OD x 8.2mm ID x 0.9mm TH Spring Steel Heat Treated Plain DIN 2093 20X8.2X0.9 by Spaenaur Inc.

Part Number: 681-246

Disc Spring DIN 2093 AM-208209 20mm OD x 8.2mm ID x 0.9mm TH Spring Steel Heat Treated Plain DIN 2093 20X8.2X0.9

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-246

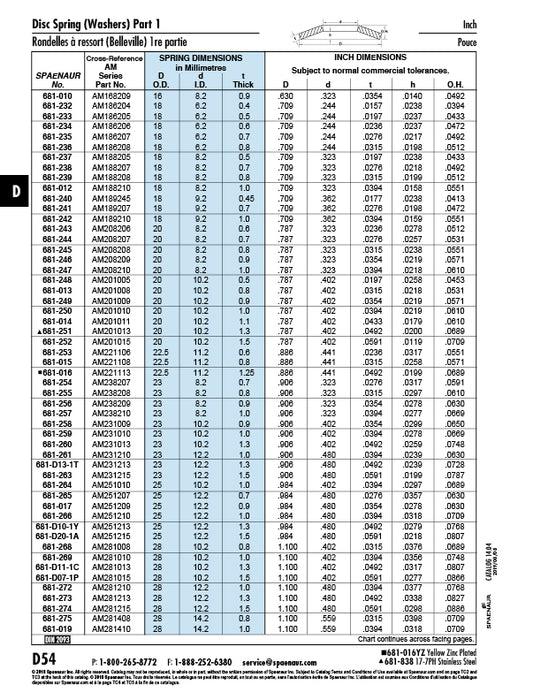

Catalog Page(s) D54,D55
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 8 mm
Inside Diameter 0.323";+0.007";8.204 mm;+0.152 mm
Outside Diameter 0.787";-0.008";19.990 mm;-0.203 mm
Thickness 0.035";0.002";0.899 mm;0.051 mm
Overall Height 0.057";+0.006";-0.003";1.450 mm;+0.15 mm;-0.08 mm
Height 0.2817"
Standard SAE 6150
