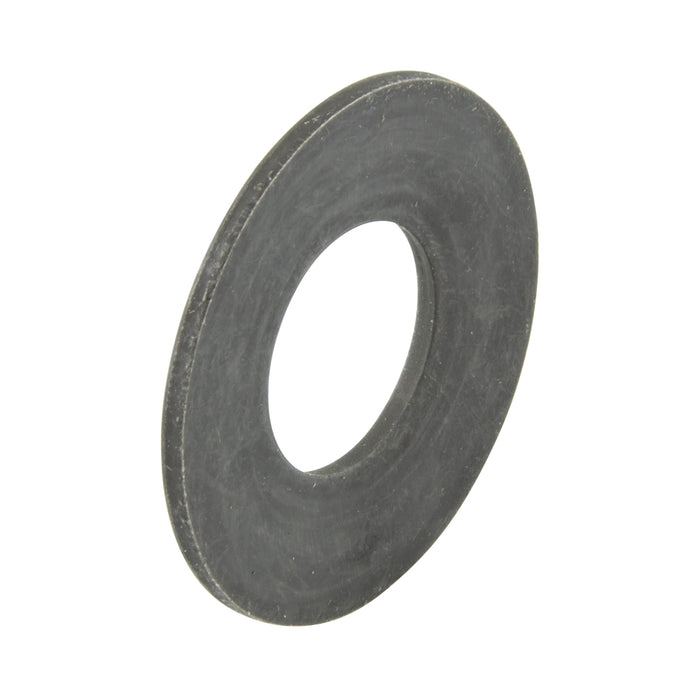

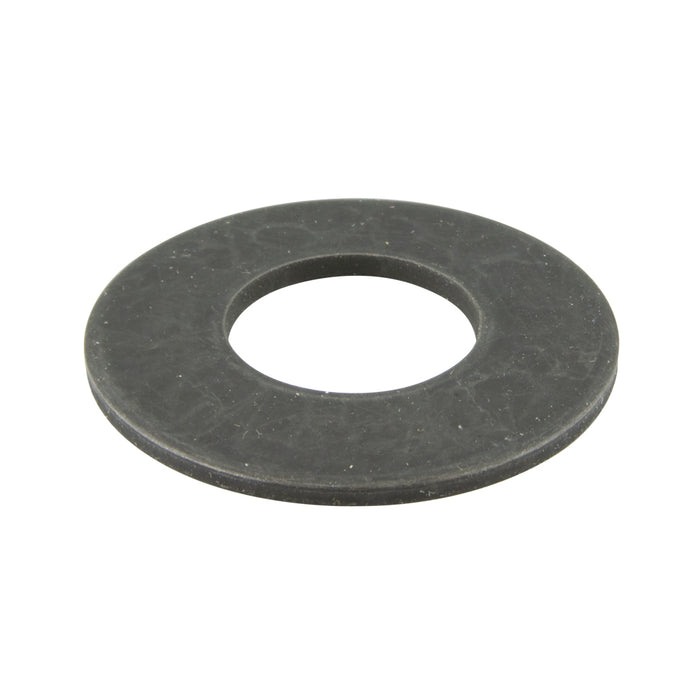

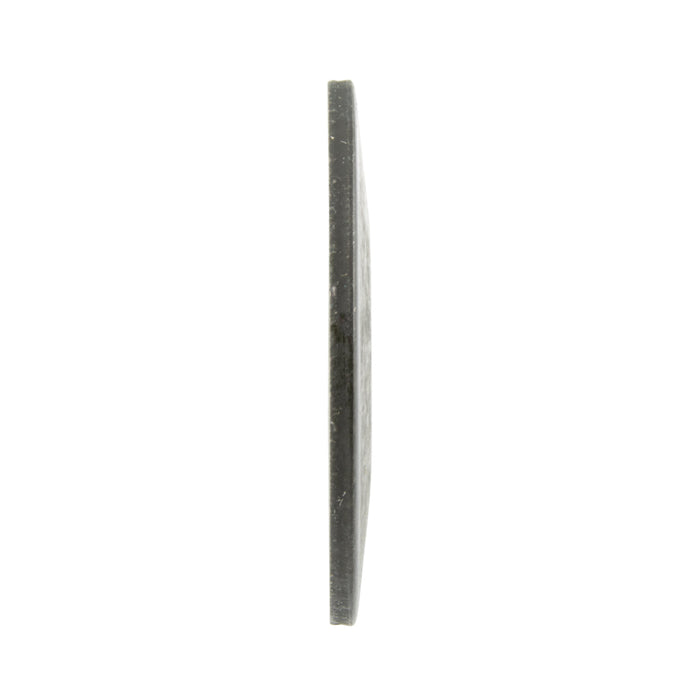

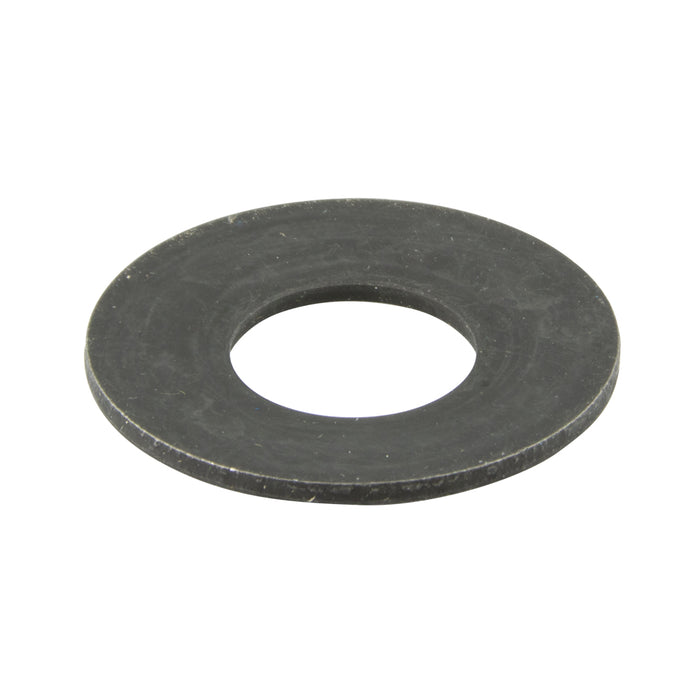

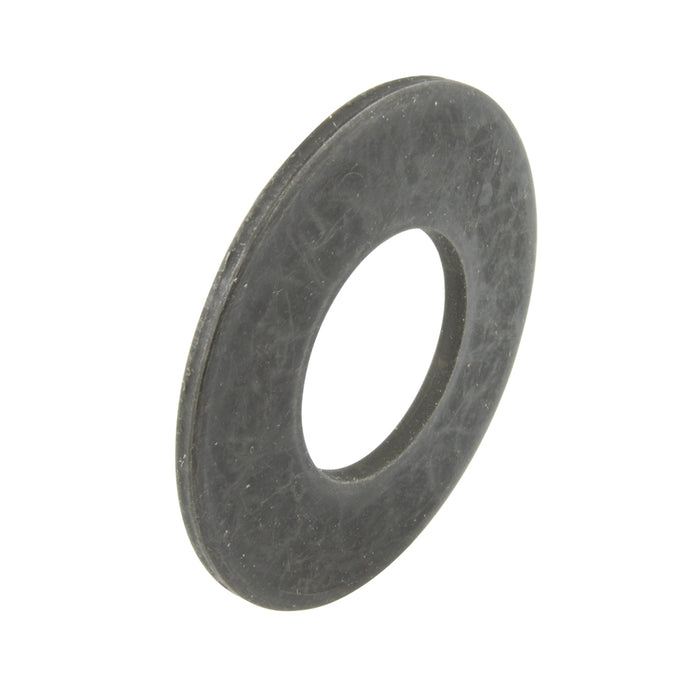

Disc Spring DIN 2093 AM-208206 20mm OD x 8.2mm ID x 0.6mm TH Chrome Vanadium Steel Self-Colour DIN 2093 20X8.2X0.6 by Spaenaur Inc.

Part Number: 681-243

Disc Spring DIN 2093 AM-208206 20mm OD x 8.2mm ID x 0.6mm TH Chrome Vanadium Steel Self-Colour DIN 2093 20X8.2X0.6

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-243
Catalog Page(s) D54,D55
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Chrome Vanadium Steel
Finish Plain
Compatible Hole Size 8 mm
Inside Diameter 0.323";+0.006";8.2 mm;+0.152 mm
Outside Diameter 0.787";-0.008";20 mm;-0.203 mm
Thickness 0.0236";+0.0008";-0.0024";0.6 mm;+0.02 mm;-0.06 mm
Overall Height 0.0512"
Height 0.1982"
Standard SAE 6150
