Disc Spring DIN 2093C AM-189245 18mm OD x 9.2mm ID x 0.45mm TH Spring Steel Heat Treated Plain DIN 2093 18X9.2X0.45 by Spaenaur Inc.

Part Number: 681-240

Disc Spring DIN 2093C AM-189245 18mm OD x 9.2mm ID x 0.45mm TH Spring Steel Heat Treated Plain DIN 2093 18X9.2X0.45

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-240

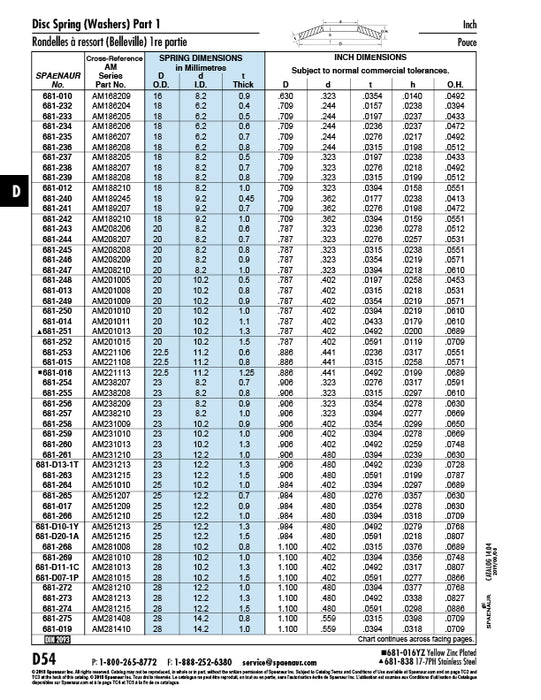

Catalog Page(s) D54,D55
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 9 mm
Inside Diameter 9.2 mm
Outside Diameter 18 mm
Thickness 0.45 mm
Overall Height 1.05 mm
Height 0.2477"
Standard DIN 2093
