Disc Spring DIN 2093 AM-186208 18mm OD x 6.2mm ID x 0.8mm TH Spring Steel Heat Treated Plain DIN 2093 18X6.2X0.8 by Spaenaur Inc.

Part Number: 681-236

Disc Spring DIN 2093 AM-186208 18mm OD x 6.2mm ID x 0.8mm TH Spring Steel Heat Treated Plain DIN 2093 18X6.2X0.8

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-236

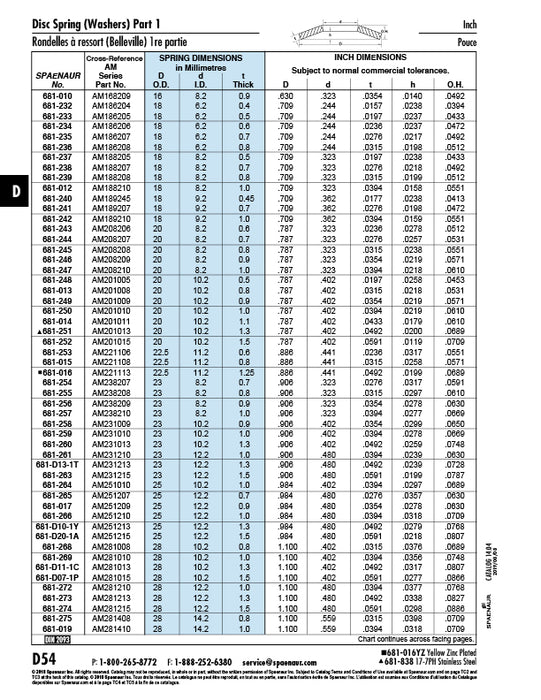

Catalog Page(s) D54,D55
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 6 mm
Inside Diameter 0.244";+0.005";6.198 mm;+0.152 mm
Outside Diameter 0.709";-0.007";18.009 mm;-0.203 mm
Thickness 0.032";0.002";0.800 mm;0.051 mm
Overall Height 0.051";+0.006";-0.003";1.300 mm;+0.15 mm;-0.08 mm
Height 0.247"
Standard SAE 6150
