Disc Spring DIN 2093 AM-168208 16mm OD x 8.2mm ID x 0.8mm TH Spring Steel Heat Treated Plain DIN 2093 16X8.2X0.8 by Spaenaur Inc.

Part Number: 681-231

Disc Spring DIN 2093 AM-168208 16mm OD x 8.2mm ID x 0.8mm TH Spring Steel Heat Treated Plain DIN 2093 16X8.2X0.8

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-231

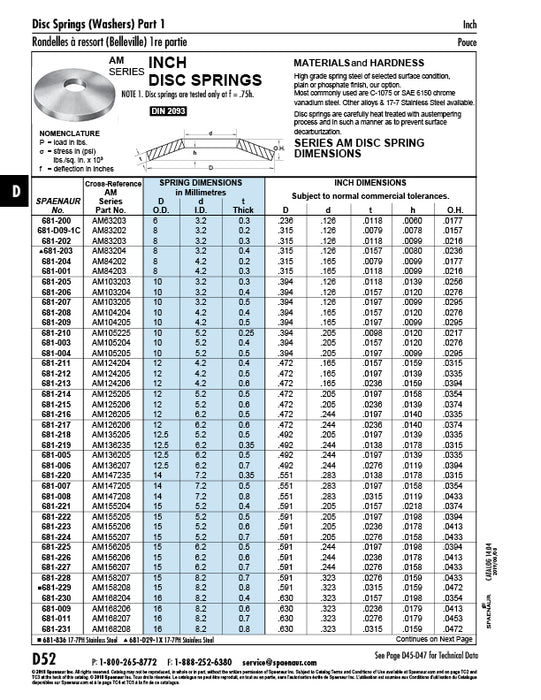

Catalog Page(s) D52,D53
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 8 mm
Inside Diameter 8.2 mm
Outside Diameter 16 mm
Thickness 0.8 mm
Height 0.0437"
Standard SAE 6150
