Disc Spring DIN 2093 AM-155206 15mm OD x 5.2mm ID x 0.6mm TH Spring Steel Heat Treated Plain DIN 2093 15X5.2X0.6 by Spaenaur Inc.

Part Number: 681-223

Disc Spring DIN 2093 AM-155206 15mm OD x 5.2mm ID x 0.6mm TH Spring Steel Heat Treated Plain DIN 2093 15X5.2X0.6

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-223

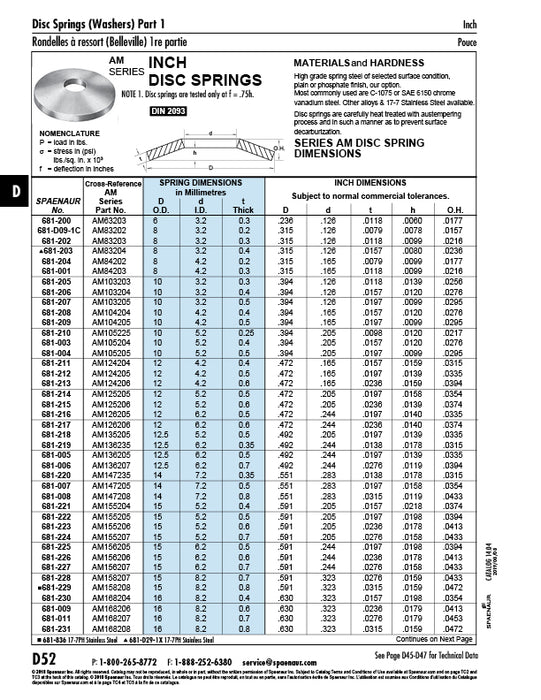

Catalog Page(s) D52,D53
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 5 mm
Inside Diameter 0.205";+0.005";5.207 mm;+0.127 mm
Outside Diameter 0.591";-0.007";15.001 mm;-0.178 mm
Thickness 0.024";0.002";0.599 mm;-0.025 mm
Overall Height 0.041";+0.004";-0.002";1.049 mm;+0.10 mm;-0.05 mm
Height 0.0416"
Standard SAE 6150
