Disc Spring DIN 2093 AM-125206 12mm OD x 5.2mm ID x 0.6mm TH Spring Steel Heat Treated Plain DIN 2093 12X5.2X0.6 by Spaenaur Inc.

Part Number: 681-215

Disc Spring DIN 2093 AM-125206 12mm OD x 5.2mm ID x 0.6mm TH Spring Steel Heat Treated Plain DIN 2093 12X5.2X0.6

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-215

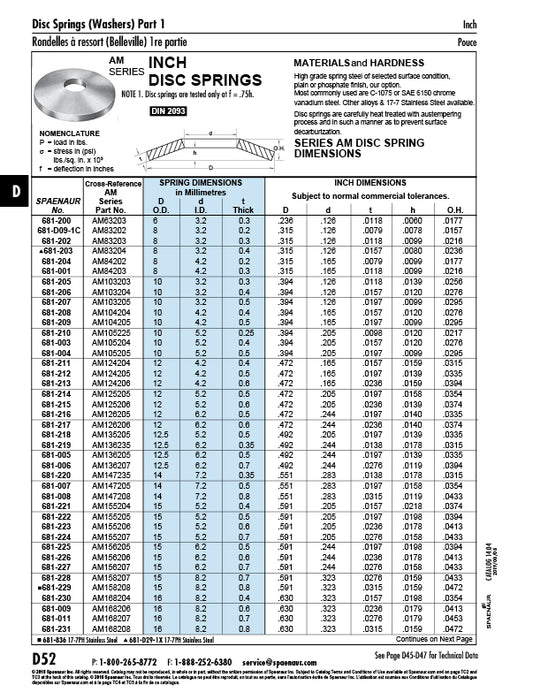

Catalog Page(s) D52,D53
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 5 mm
Inside Diameter 5.2 mm
Outside Diameter 12 mm
Thickness 0.6 mm
Overall Height 0.95 mm
Height 0.0595"
Standard SAE 6150
