Disc Spring DIN 2093 AM-124206 12mm OD x 4.2mm ID x 0.6mm TH Spring Steel Heat Treated Plain DIN 2093 12X4.2X0.6 by Spaenaur Inc.

Part Number: 681-213

Disc Spring DIN 2093 AM-124206 12mm OD x 4.2mm ID x 0.6mm TH Spring Steel Heat Treated Plain DIN 2093 12X4.2X0.6

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-213

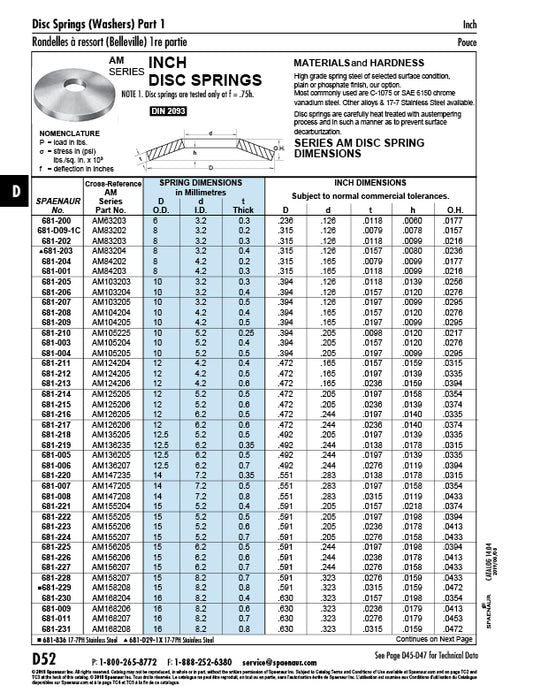

Catalog Page(s) D52,D53
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 4 mm
Inside Diameter 4.2 mm
Outside Diameter 12 mm
Thickness 0.6 mm
Overall Height 1.0 mm
Height 0.0376"
Standard SAE 6150
