Disc Spring DIN 2093 AM-104205 10mm OD x 4.2mm ID x 0.5mm TH Spring Steel Heat Treated Plain DIN 2093 10X4.2X0.5 by Spaenaur Inc.

Part Number: 681-209

Disc Spring DIN 2093 AM-104205 10mm OD x 4.2mm ID x 0.5mm TH Spring Steel Heat Treated Plain DIN 2093 10X4.2X0.5

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-209

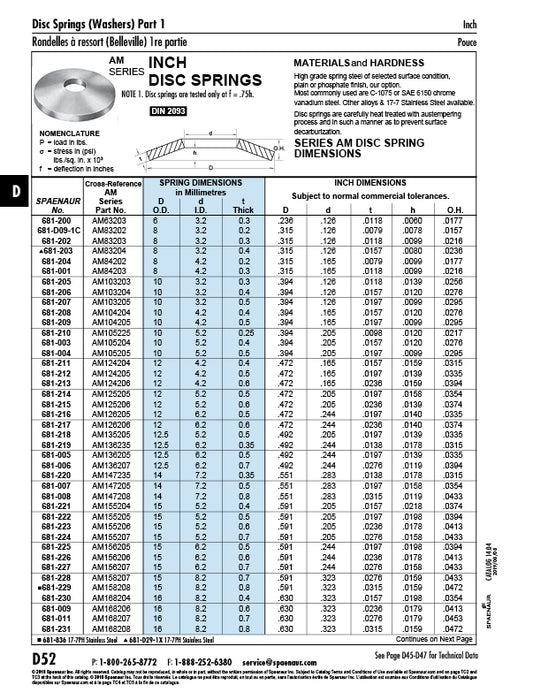

Catalog Page(s) D52,D53
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 4 mm
Inside Diameter 4.2 mm
Outside Diameter 10 mm
Thickness 0.5 mm
Overall Height 0.75 mm
Height 0.0199"
Standard SAE 6150
