Disc Spring DIN 2093C AM-84202 8mm OD x 4.2mm ID x 0.2mm TH Spring Steel Heat Treated Plain DIN 2093 8X4.2X0.2 by Spaenaur Inc.

Part Number: 681-204

Disc Spring DIN 2093C AM-84202 8mm OD x 4.2mm ID x 0.2mm TH Spring Steel Heat Treated Plain DIN 2093 8X4.2X0.2

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-204

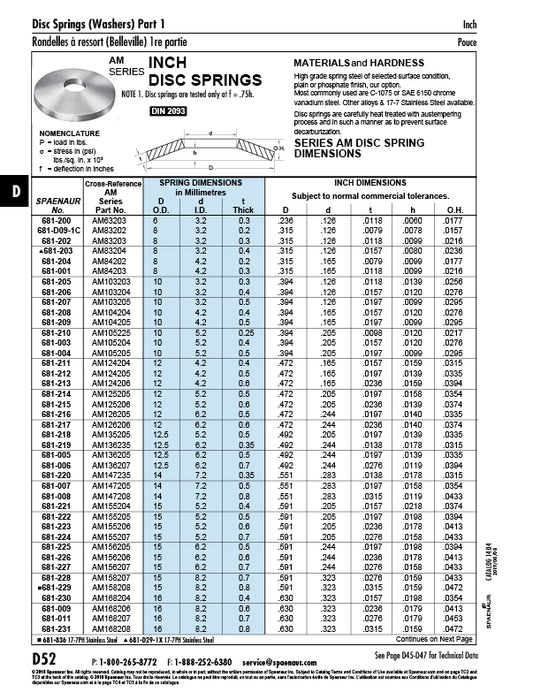

Catalog Page(s) D52,D53
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 4 mm
Inside Diameter 0.165";+0.007";4.191 mm;+0.127 mm
Outside Diameter 0.315";-0.007";8.001 mm;-0.152 mm
Thickness 0.008";0.002";0.201 mm;-0.025 mm
Overall Height 0.018";+0.004";-0.002";0.450 mm;+0.10 mm;-0.05 mm
Height 0.0277"
Standard DIN 2093
