Disc Spring DIN 2093 AM-83204 8mm OD x 3.2mm ID x 0.4mm TH Spring Steel Heat Treated Plain DIN 2093 8X3.2X0.4 by Spaenaur Inc.

Part Number: 681-203

Disc Spring DIN 2093 AM-83204 8mm OD x 3.2mm ID x 0.4mm TH Spring Steel Heat Treated Plain DIN 2093 8X3.2X0.4

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-203

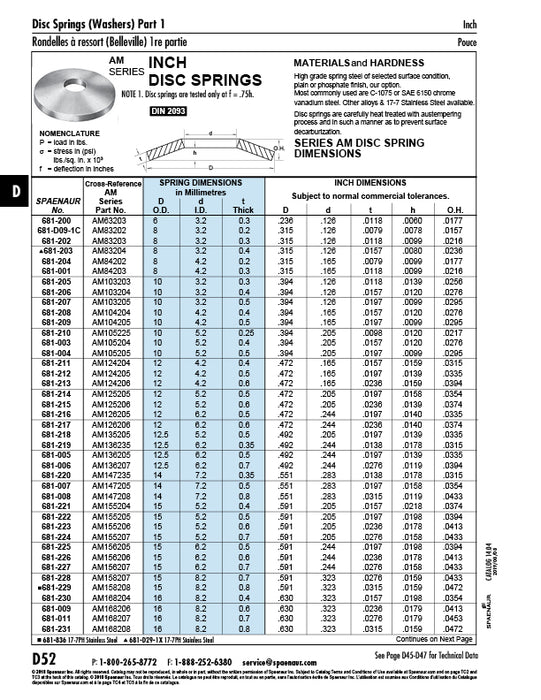

Catalog Page(s) D52,D53
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 3 mm
Inside Diameter 0.126";+0.005";3.2 mm;+0.127 mm
Outside Diameter 0.315";-0.006";8 mm;-0.152 mm
Thickness 0.0157";+0.0008";-0.0024";0.4 mm;+0.02 mm;-0.06 mm
Overall Height 0.0236"
Height 0.0278"
Standard SAE 6150
