Part Number: 681-023

Disc Spring DIN 2093B AM-361813 35.5mm OD x 18.3mm ID x 1.25mm TH Spring Steel Heat Treated Plain DIN 2093 35.5X18.3X1.25

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-023

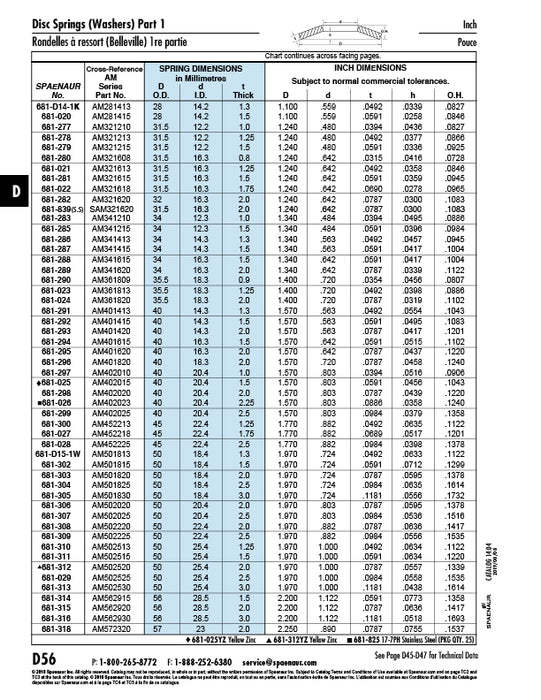

Catalog Page(s) D56,D57
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 18 mm
Inside Diameter 18.3 mm
Outside Diameter 35.5 mm
Thickness 1.25 mm
Overall Height 2.25 mm
Height 0.2223"
Standard DIN 2093
