Disc Spring DIN 2093B AM-221108 22mm OD x 11.2mm ID x .8mm TH Spring Steel Heat Treated Plain DIN 2093 22.5X11.2X0.80 by Spaenaur Inc.

Part Number: 681-015

Disc Spring DIN 2093B AM-221108 22mm OD x 11.2mm ID x .8mm TH Spring Steel Heat Treated Plain DIN 2093 22.5X11.2X0.80

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-015

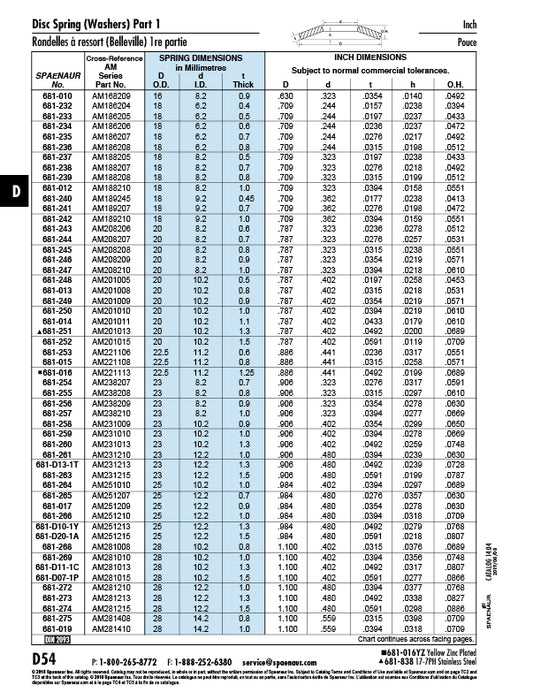

Catalog Page(s) D54,D55
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 12 mm
Inside Diameter 12.2 mm
Outside Diameter 22 mm
Thickness 0.8 mm
Height 0.159"
Standard DIN 2093
