Disc Spring DIN 2093A AM-136207 12.5mm OD x 6.2mm ID x .7mm TH Spring Steel Heat Treated Plain DIN 2093 12.5X6.2X0.7 by Spaenaur Inc.

Part Number: 681-006

Disc Spring DIN 2093A AM-136207 12.5mm OD x 6.2mm ID x .7mm TH Spring Steel Heat Treated Plain DIN 2093 12.5X6.2X0.7

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-006

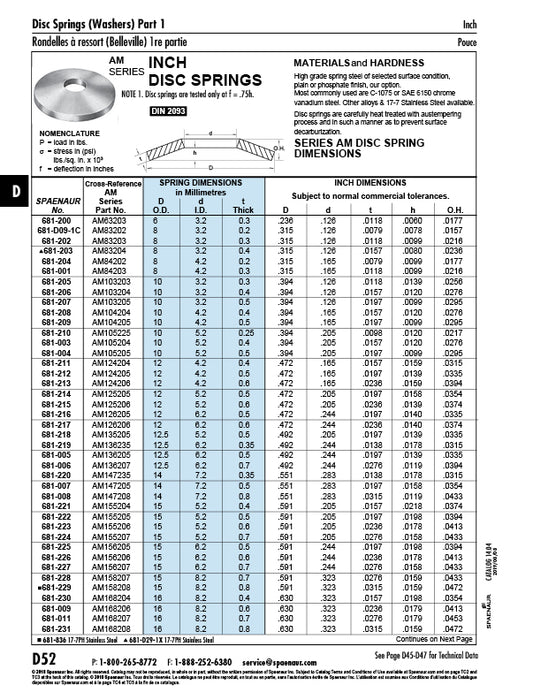

Catalog Page(s) D52,D53
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 6 mm
Inside Diameter 6.2 mm
Outside Diameter 12.5 mm
Thickness 0.7 mm
Overall Height 1.00 mm
Height 0.0219"
Standard DIN 2093
