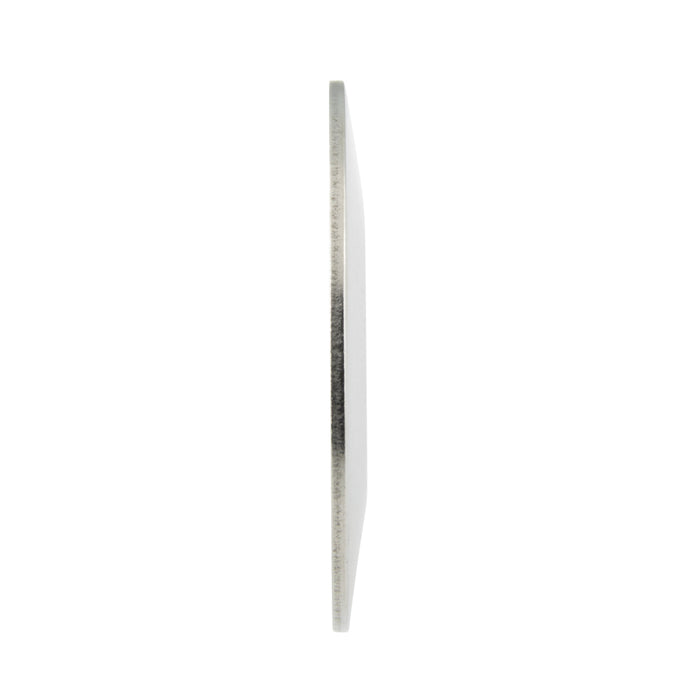

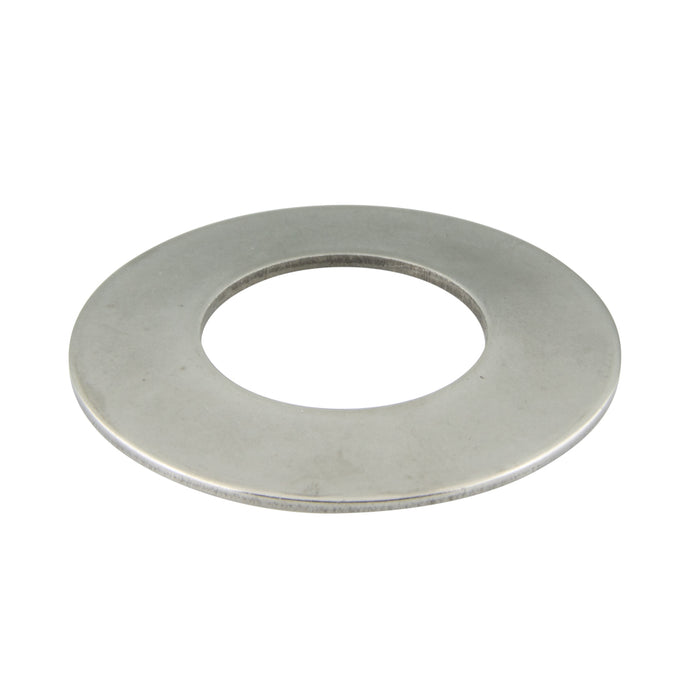

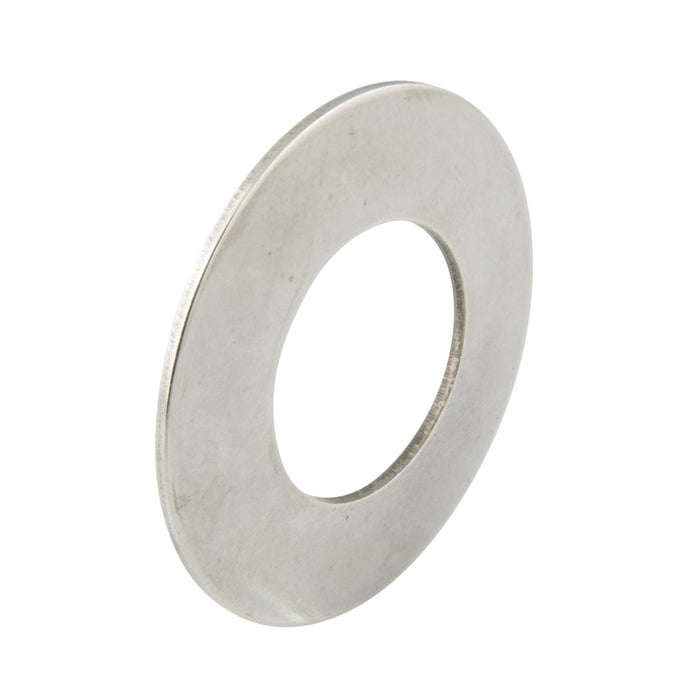

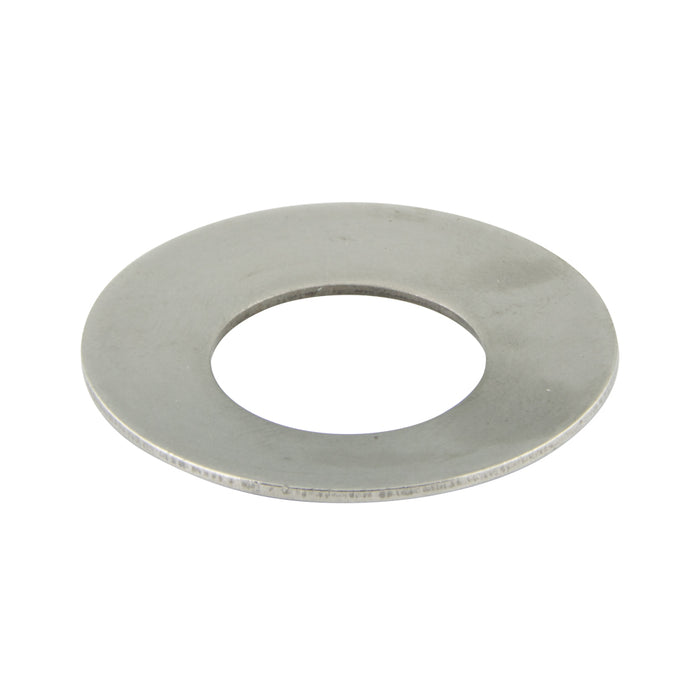

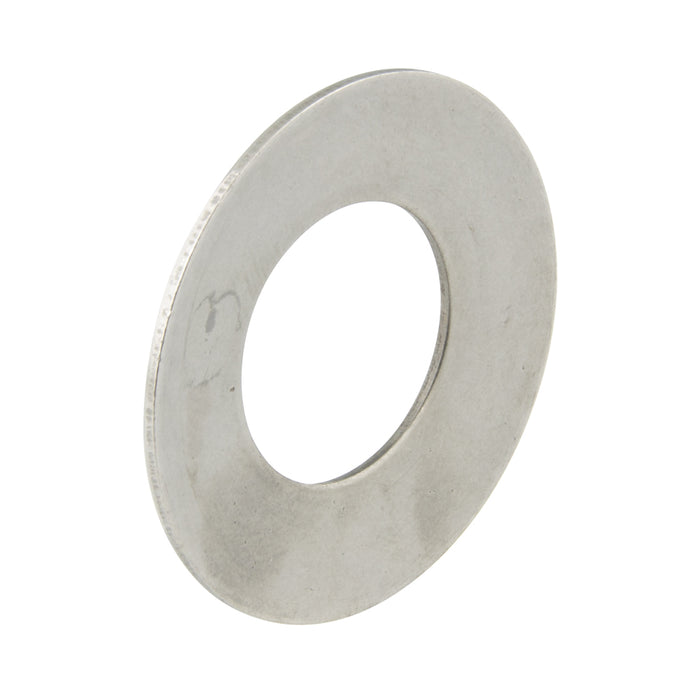

Belleville Disc Spring Sp Series 3/8"Bolt DIA (M10) .906" x .413" x .079" 17/7 PH Stainless Steel by Spaenaur Inc.

Part Number: 680-B09-1N

Legacy Part Number(s): 680-802

Belleville Disc Spring Sp Series 3/8"Bolt DIA (M10) .906" x .413" x .079" 17/7 PH Stainless Steel

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 680-B09-1N

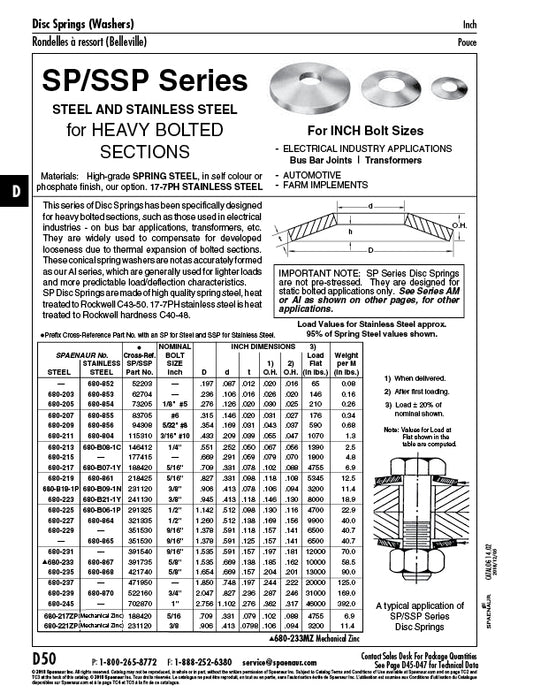

Catalog Page(s) D50
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 680-802
Vendor Series SP/SSP Series
Washer Type Curved Non-Serrated
Material Stainless Steel
Compatible Hole Size 3/8"
Inside Diameter 0.413"
Outside Diameter 0.906"
Thickness 0.078"
Overall Height 0.106"
Height 0.1194"
Hardness RC40-RC48
