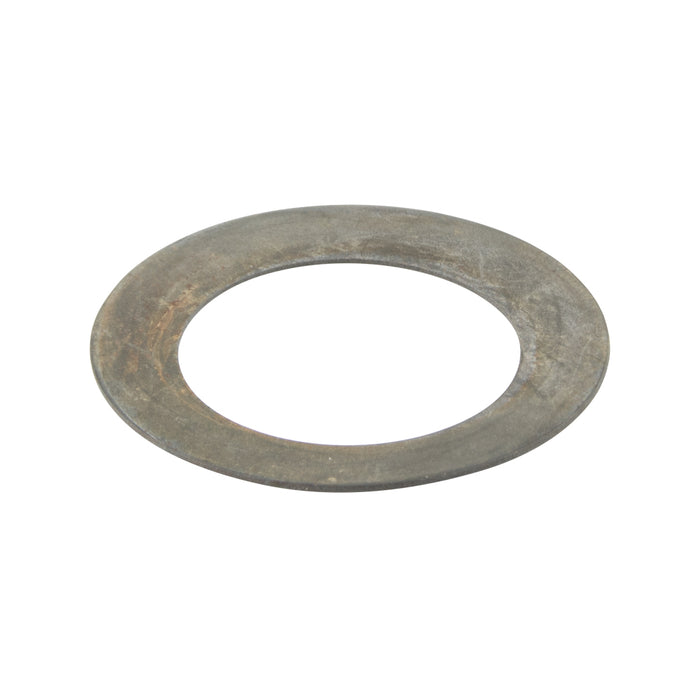

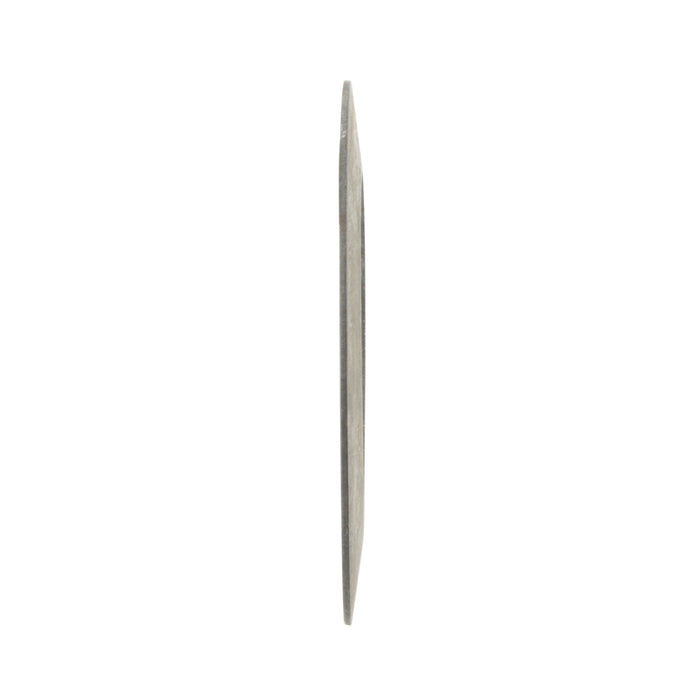

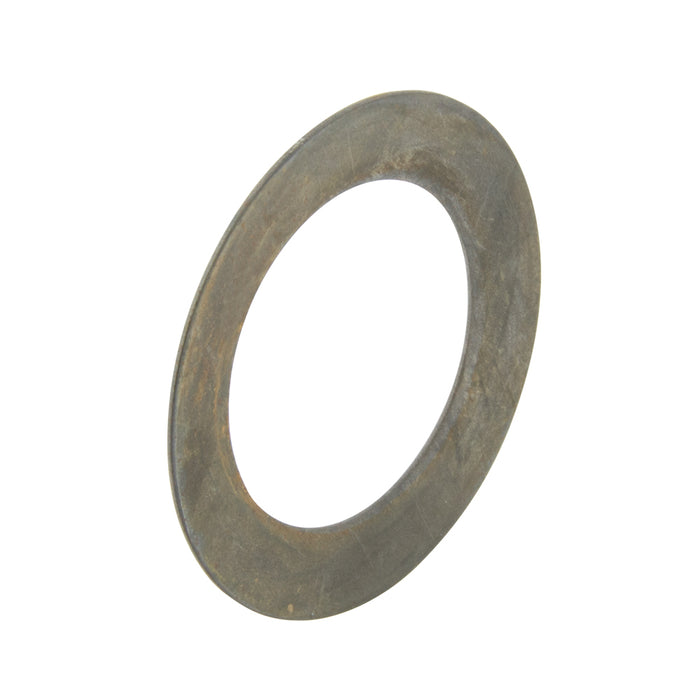

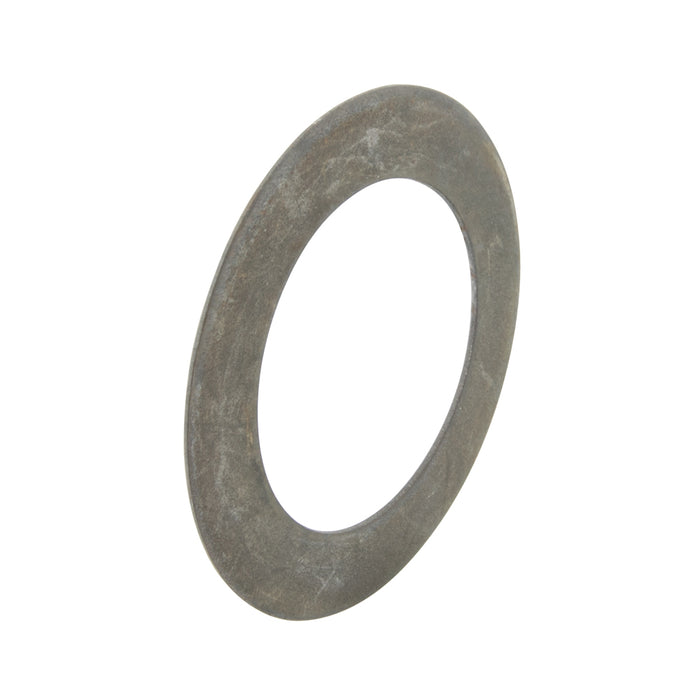

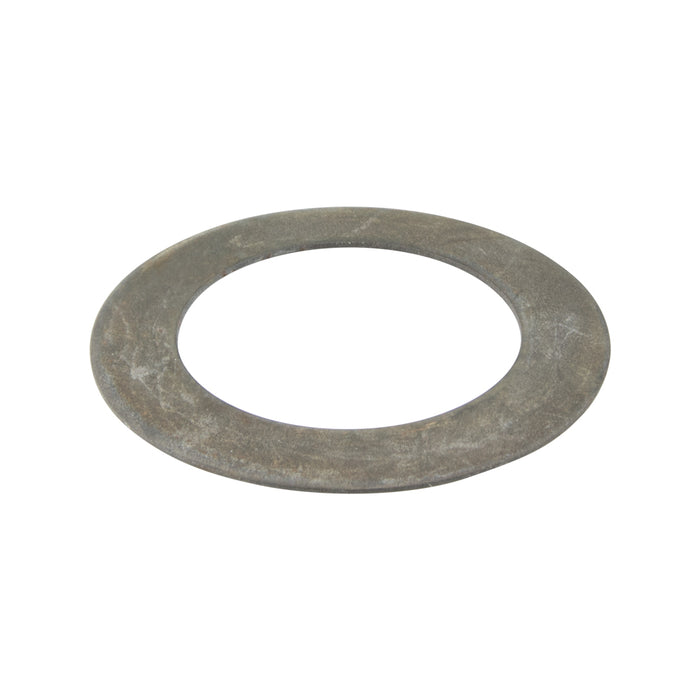

Ak Series Disc Springs for Use with Ball Bearings .740 OD x .362 ID x .0118 THK C1075 Steel Plain by Spaenaur Inc.

Part Number: 680-256

Ak Series Disc Springs for Use with Ball Bearings .740 OD x .362 ID x .0118 THK C1075 Steel Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 680-256

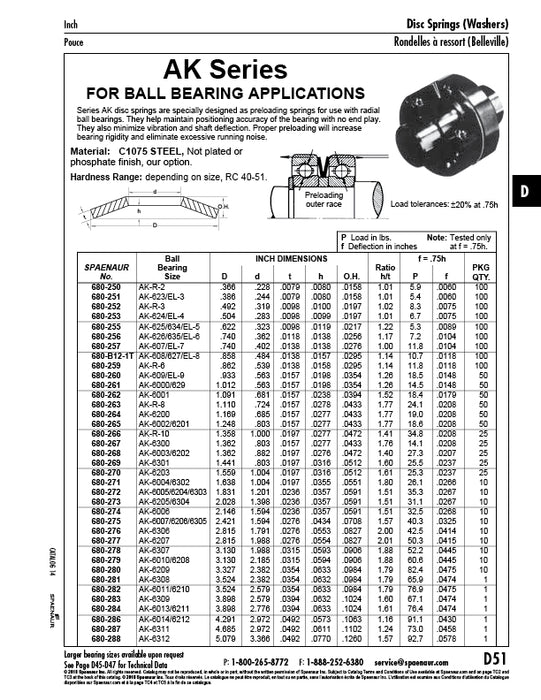

Catalog Page(s) D51
System of Measurement Imperial
Vendor Series A-K™ Series
Washer Type Belleville
Material Steel
Finish Plain
Inside Diameter 0.362";+0.008";9.2 mm;+0.203 mm
Outside Diameter 0.740";-0.010";18.8 mm;-0.229 mm
Thickness 0.012";0.0025";0.30 mm;-0.025 mm
Overall Height 0.026";+0.004";-0.002";0.65 mm;+0.10 mm;-0.05 mm
Height 0.222"
Hardness RC40-RC51
