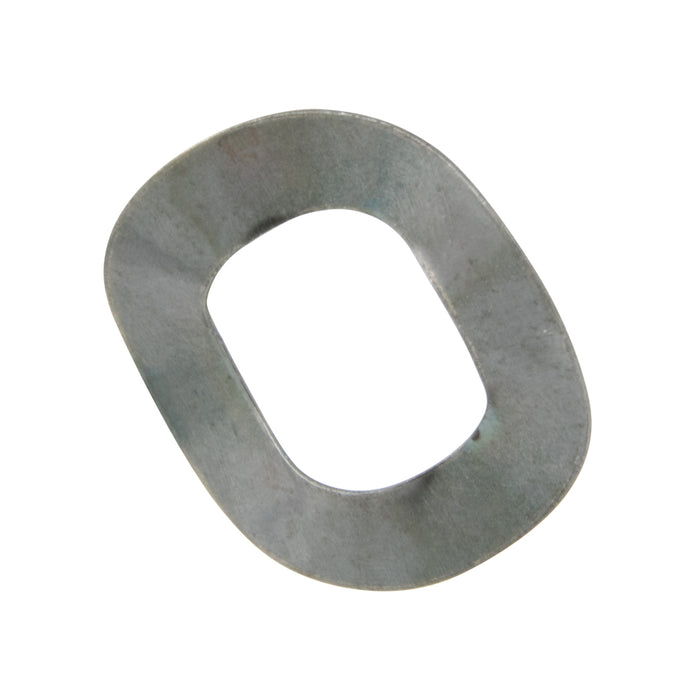

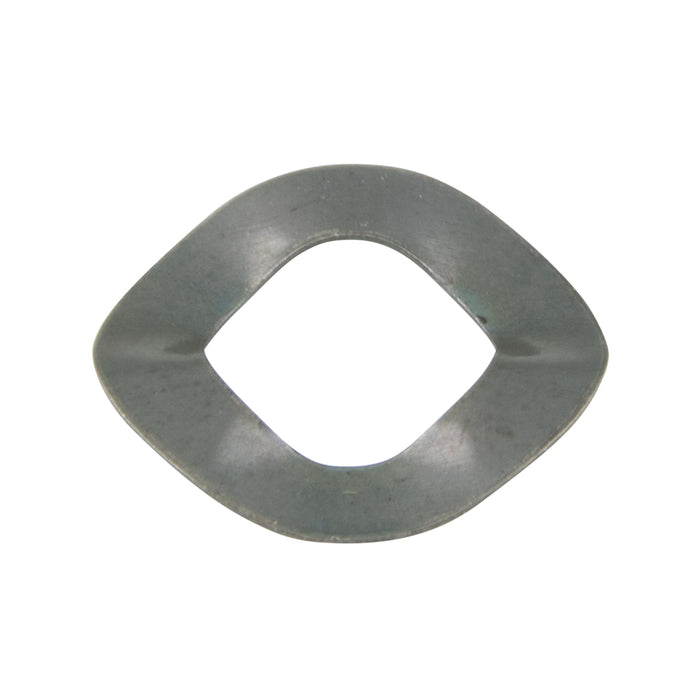

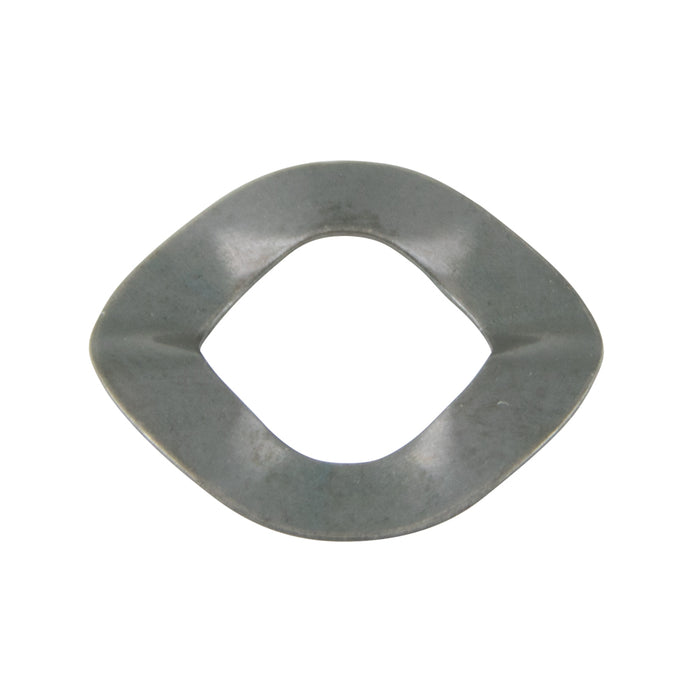

Wave Spring Tension Washers #10 (.303"OD x .060"HT x .016"TH) I.D. .195"-.204", O.D. .292"-.313", Thickness .0145"-.0175" Spring Steel Heat Treated Plain by Spaenaur Inc.

Part Number: W-379

Wave Spring Tension Washers #10 (.303"OD x .060"HT x .016"TH) I.D. .195"-.204", O.D. .292"-.313", Thickness .0145"-.0175" Spring Steel Heat Treated Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number W-379

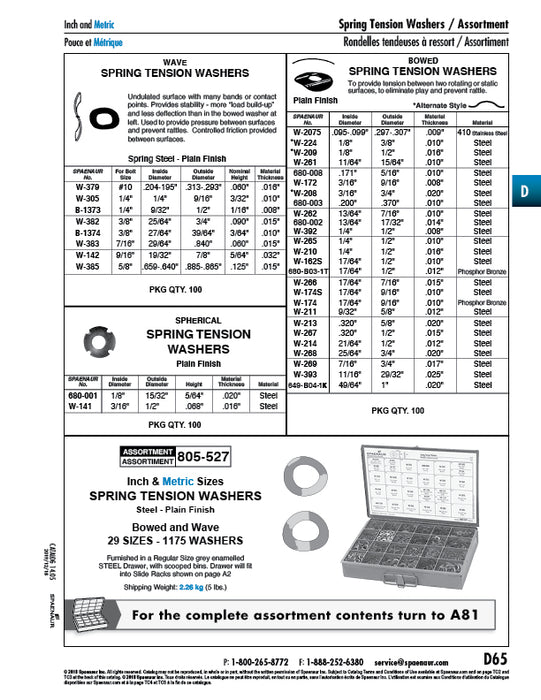

Catalog Page(s) D65
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Washer Type Single Wave
Compatible Bolt Size #10
Inside Diameter .204-195"
Outside Diameter .313-.293"
Overall Height .060 Nominal"
Thickness .016"
Material Spring Steel
Finish Plain
