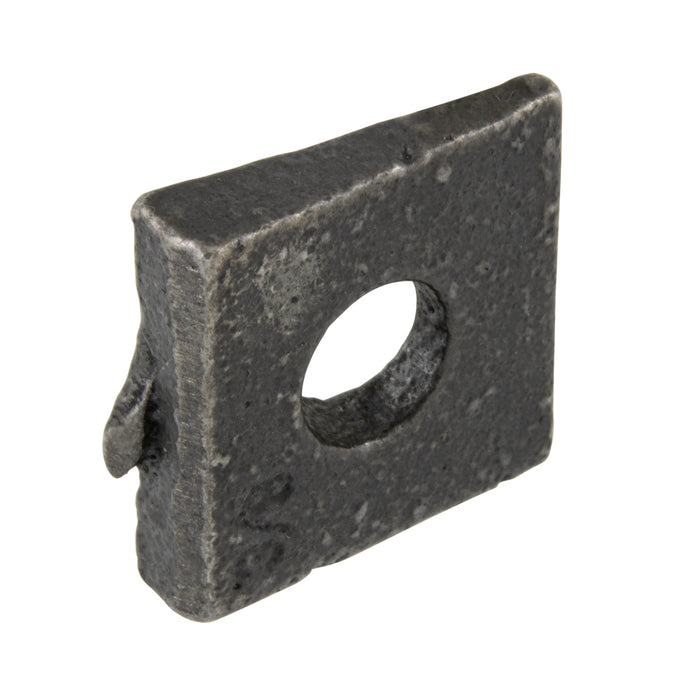

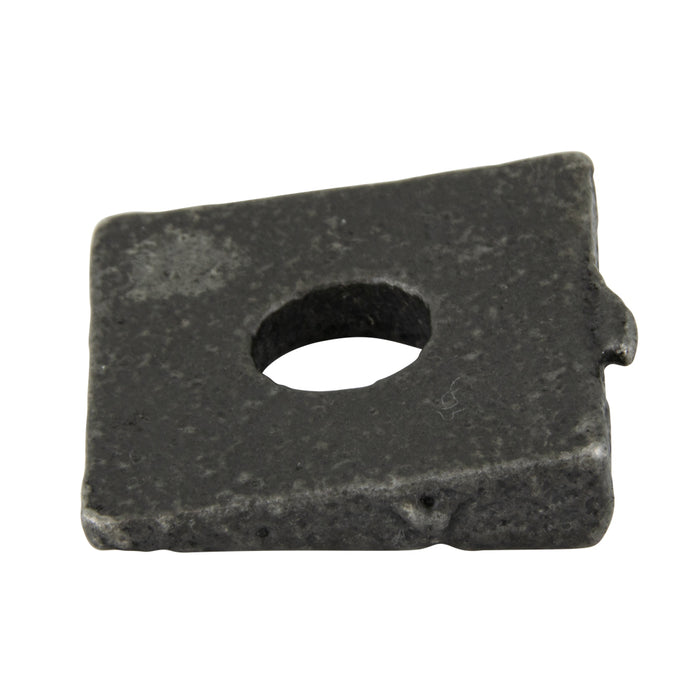

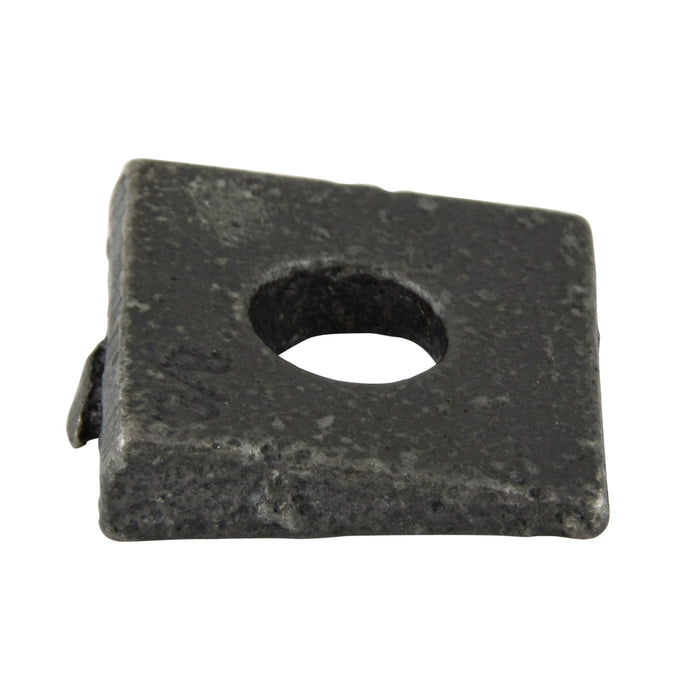

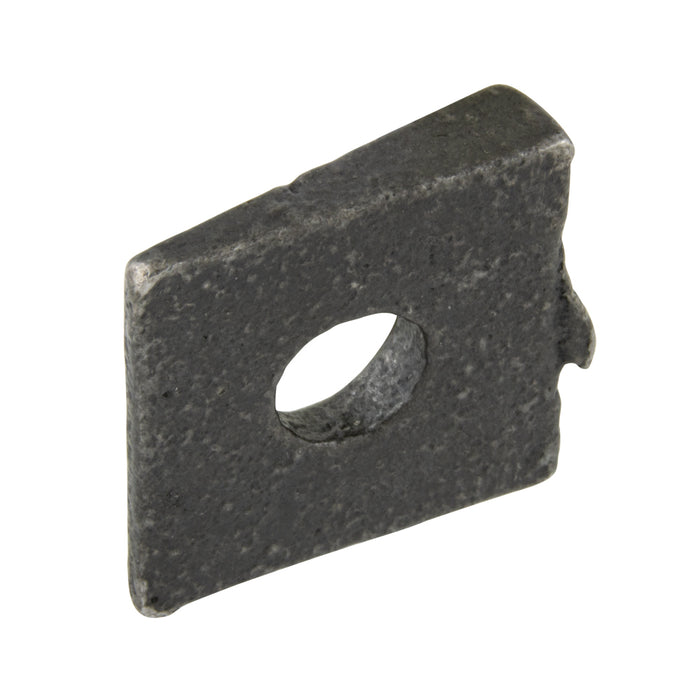

Square Bevel Washer, 16 2/3% Slope for 3/4" Bolt DIA Malleable Iron, Plain Finish by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: W-292

Square Bevel Washer, 16 2/3% Slope for 3/4" Bolt DIA Malleable Iron, Plain Finish

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number W-292

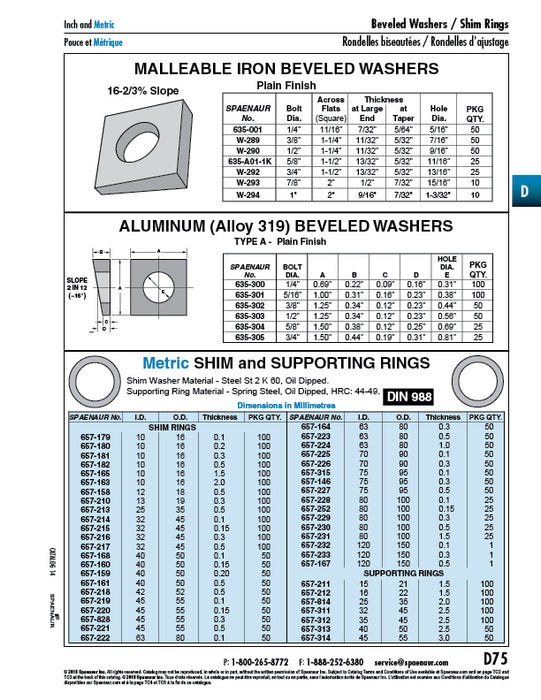

Catalog Page(s) D75,D85
System of Measurement Imperial
Slope 16-2/3%
Compatible Bolt Size 3/4"
Hole Diameter 13/16"
Material Malleable Iron
Finish Plain
Across Flats 1-1/2"
Length 1-1/2"
Thickness at Large Taper 13/32"
Thickness at Small Taper 5/32"
With Countersunk Hole [no]
